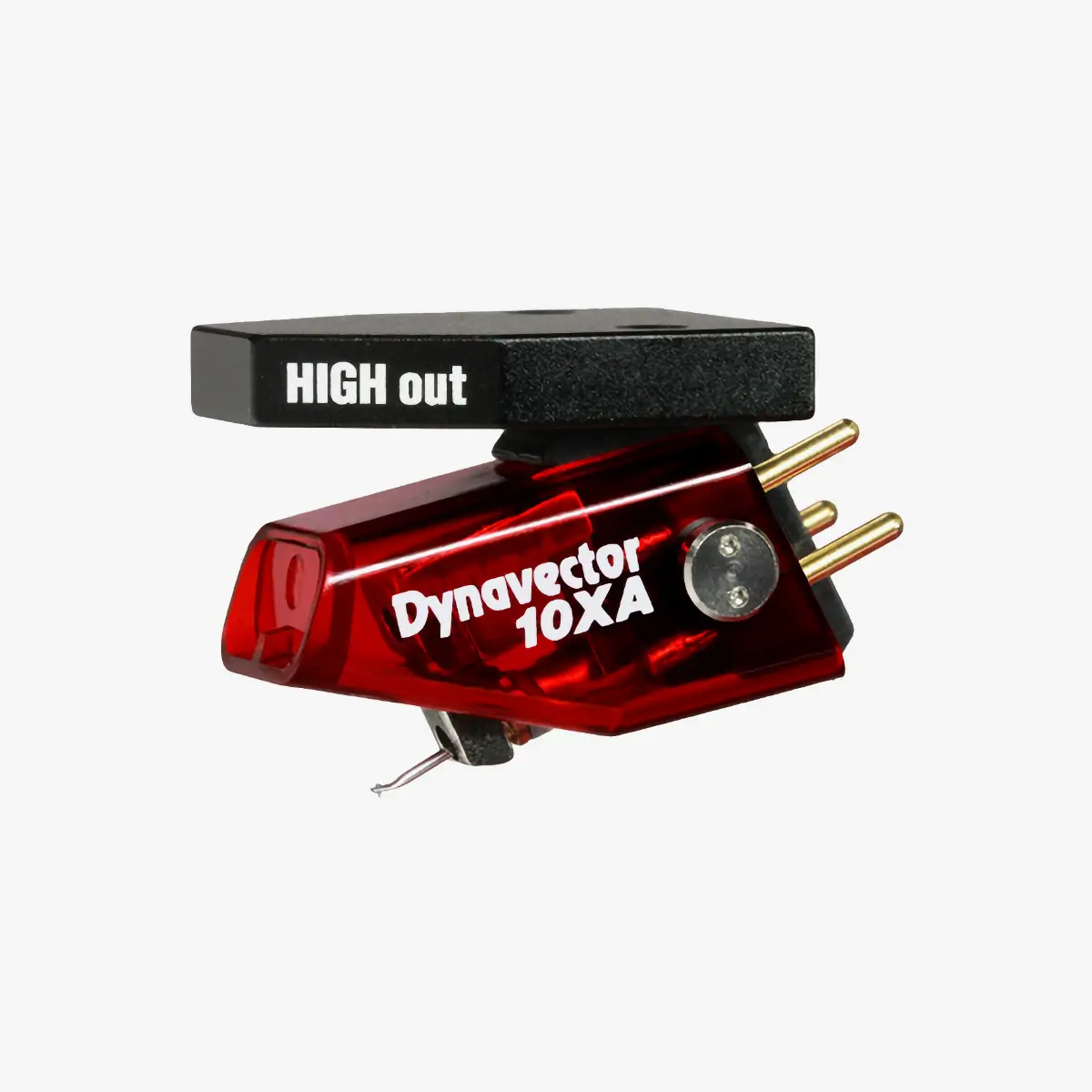

Dynavector 10XA-H Moving Coil Cartridge
Dynavector’s high output moving coil cartridge — runs straight into a standard MM phono input, no step-up transformer or head amp required. Features the new Special Magnetic Annealing process and a Shibata Type III stylus for extended, articulate high-frequency performance.
Usually dispatched in 1-2 days. Delivery & returns
£649.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Dynavector 10XA-H
For nearly half a century, Dynavector’s 10X series has been a byword for high-output moving coil cartridges – the original 10X astonished the audio world in 1978 by achieving genuinely high output from an MC design, going on to win the Design & Engineering Award at the Chicago CES that year and again in 1981. The 10XA carries that lineage into 2025 with the introduction of Dynavector’s Special Magnetic Annealing process, extending performance beyond what’s normally expected of an entry-level model. The 10XA-H is the high output version, running straight into a standard MM phono input. For the low output version, built for owners of a dedicated MC phono stage or step-up transformer, see the 10XA-L.
Special Annealing Magnetic Circuit
The magnetic circuit at the core of any MC cartridge uses pure iron for its stable magnetic properties, but the process of shaping and machining that iron distorts its crystal structure at an atomic level, reducing magnetic permeability. Dynavector’s Special Annealing process – refining the temperature, environment, duration and heating/cooling rates used to heat-treat each part – restores that distorted structure, for an expansive, resonant sound without the loss of resolution a generic annealing process would leave behind.
Neodymium magnet with Softened Magnetism
A powerful neodymium magnet gives the 10XA its output, with Dynavector’s patented Softened Magnetism technology reducing the distortion and harsh, edgy sound that rare-earth magnets can otherwise introduce – for a clean, well-separated sound without sacrificing drive.
Shibata Type III stylus
A Shibata Type III stylus, chosen for its superior high-frequency response, rides on a lightweight, rigid aluminium cantilever, improving groove tracking and enabling higher-resolution playback.
High output, built for simplicity
Dynavector’s own coil-winding technology makes a genuinely high-output MC cartridge possible: many turns of ultra-fine wire around the coil bobbin retain a healthy 2.8mV output, eliminating the need for a head amplifier or step-up transformer. That means you get the sonic character of a moving coil cartridge with the plug-and-play simplicity of a moving magnet.
- Output: 2.8mV
- Recommended load impedance: 1,000Ω or higher
- Connects to: any standard MM phono input (47kΩ load) – no transformer or head amp required
Best for: turntable owners with a standard MM-only phono stage who want to hear what MC sounds like without buying additional equipment.
Features
Cartridge design
Special Annealing Magnetic Circuit
Restores magnetic permeability lost during machining, for an expansive, distortion-free sound.
Neodymium magnet with Softened Magnetism
Reduces the harshness of a rare-earth magnet while keeping its output and drive.
Shibata Type III stylus with aluminium cantilever
A lightweight, rigid cantilever paired with a high-frequency-optimised stylus profile.
Output & connection
High output coil winding
Ultra-fine wire, wound many times, retains a healthy 2.8mV output.
Direct MM phono compatibility
Runs straight into a standard 47kΩ MM input, no step-up transformer or head amp.
Specifications
| Brand | Dynavector |
|---|---|
| Type | High output MC, flux damper & softened magnetism |
| Output Voltage | 2.8mV (1kHz, 5cm/sec) |
| Channel Separation | 25dB (1kHz) |
| Channel Balance | 1.0dB (1kHz) |
| Frequency Response | 20Hz–20kHz (±2dB) |
| Compliance | 12mm/N |
| Tracking Force | 1.8–2.2g |
| Impedance | 150 ohms |
| Recommended Load Impedance | >1,000 ohms |
| Cantilever | 6mm length hardened aluminium pipe |
| Stylus | Nude diamond Shibata III line contact |
| Weight | 7.5g |
In the box
- 10XA-H cartridge
- Mounting screws (M2.5)
- Instruction manual
- Warranty card
