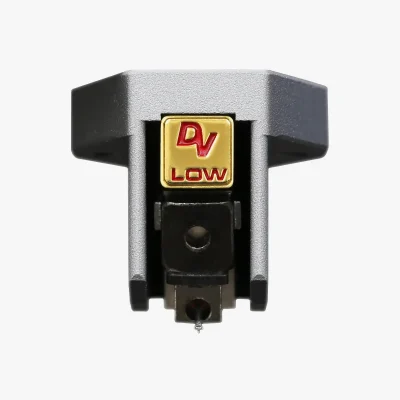

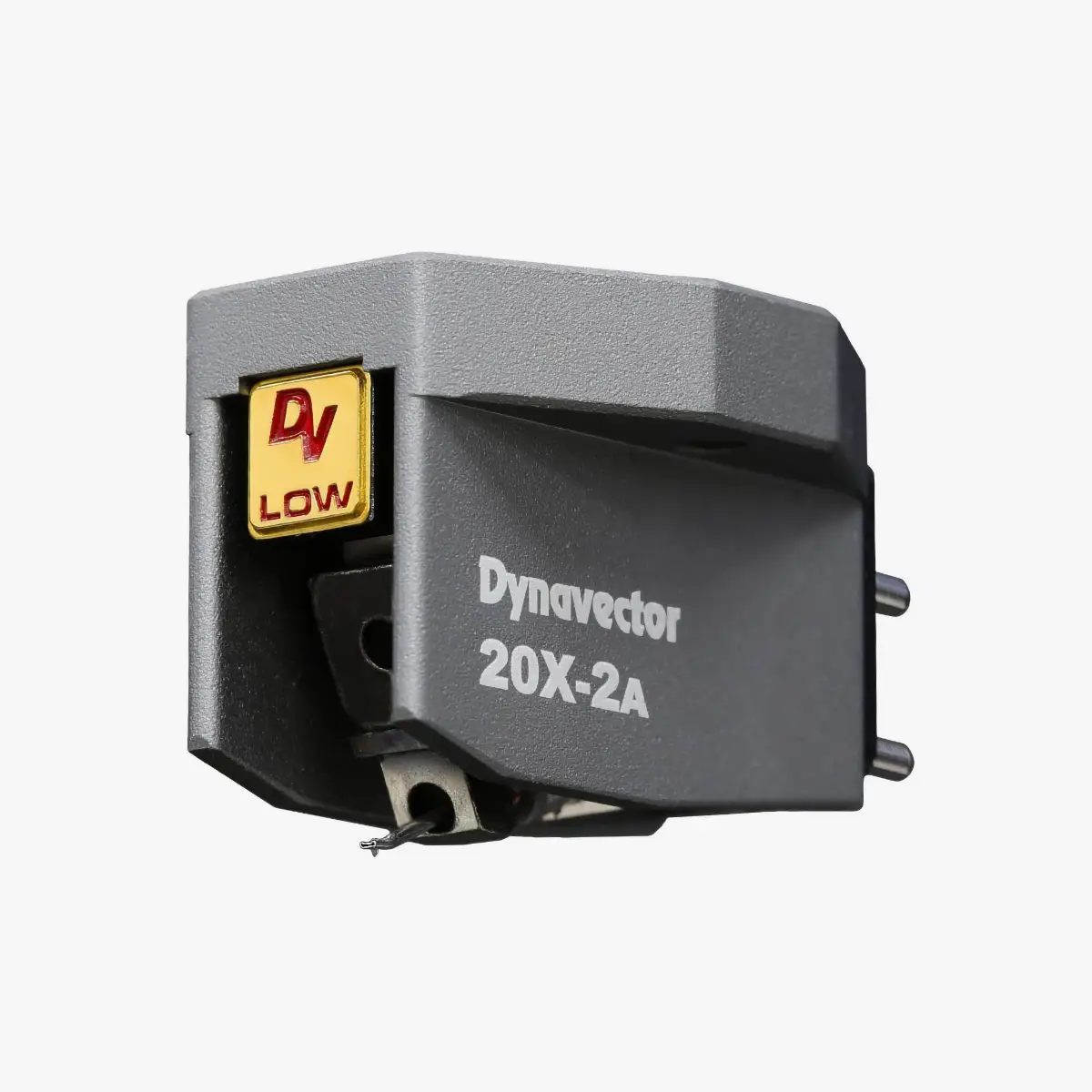

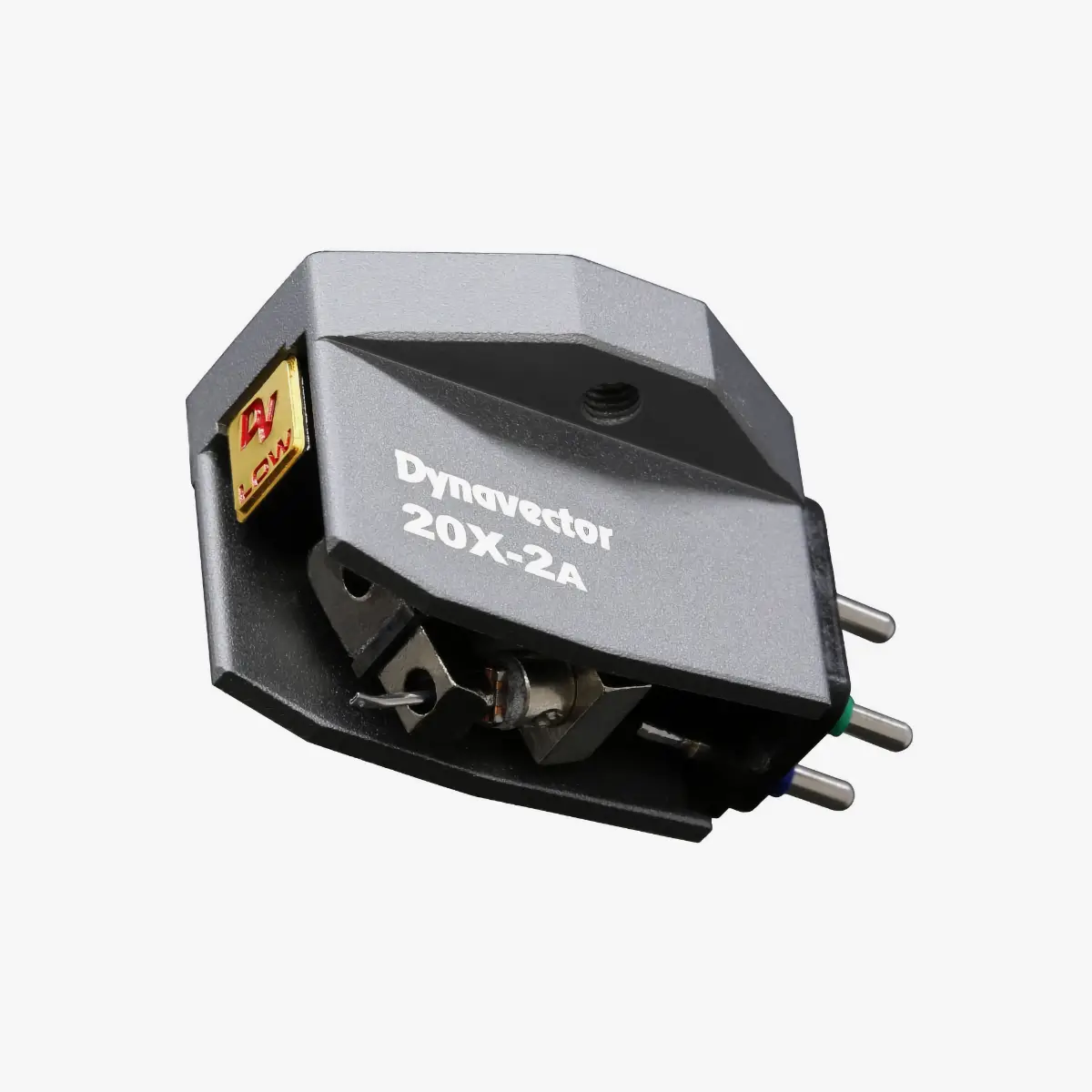

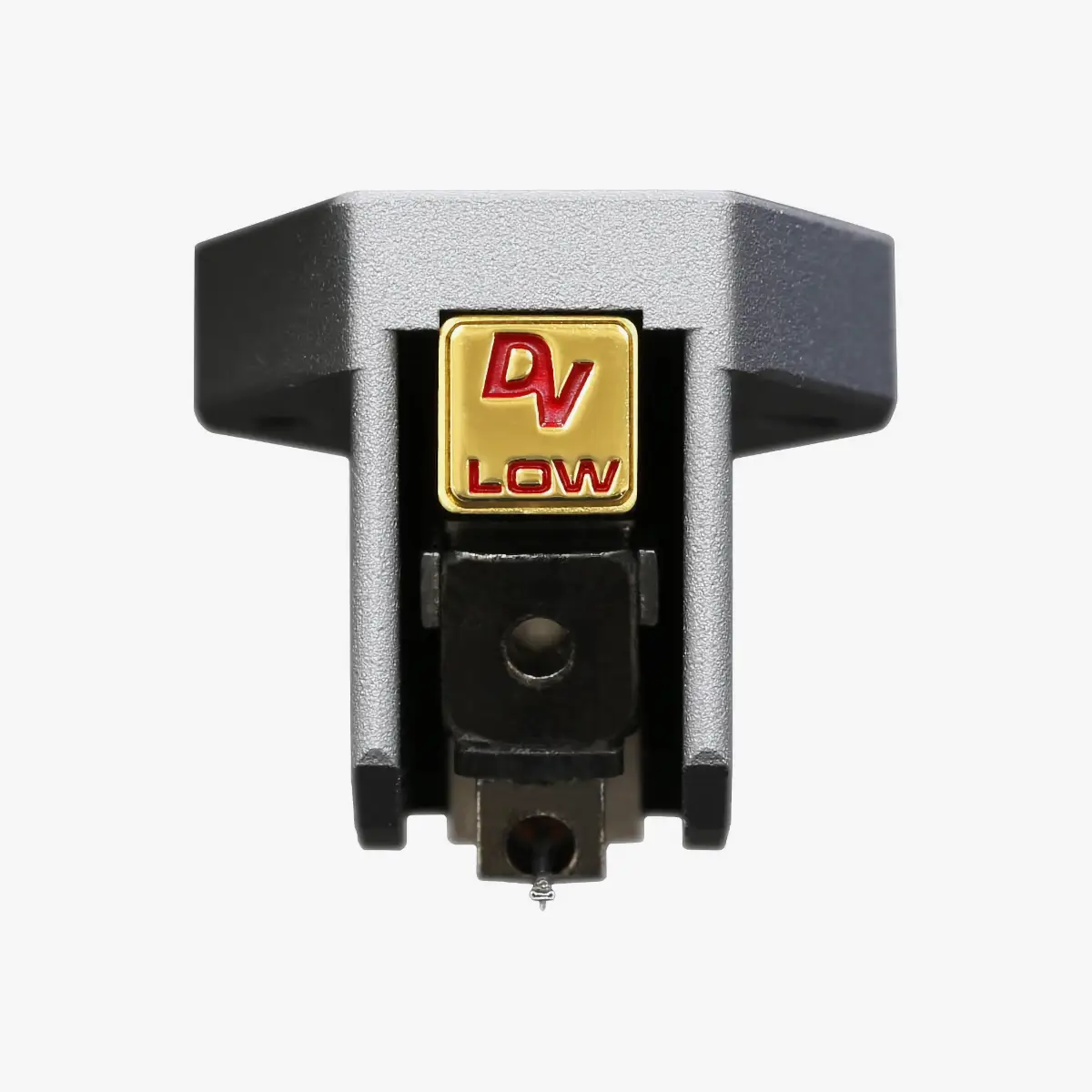

Dynavector 20X2A-L Moving Coil Cartridge
Dynavector’s low output moving coil cartridge – built for a dedicated MC phono stage or step-up transformer, using the same PCOCC coil wire as Dynavector’s higher-end models. Shares the same base structure as the XX-2A and Te Kaitora Rua, at a genuinely accessible price.
Usually dispatched in 1-2 days. Delivery & returns
£899.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Dynavector 20X2A-L
The 20X2A is one of Dynavector’s more accessible moving coil cartridges, with a solid aluminium alloy body, hard aluminium cantilever and Micro-Ridge stylus tip. Its magnetic circuit shares the same base structure as Dynavector’s XX family and the Te Kaitora Rua, brought down to a genuinely accessible price rather than built to a different standard. The 20X2A-L is the low output version, built for a dedicated MC phono stage or step-up transformer, using the same PCOCC coil wire found in Dynavector’s higher-end models. For the high output version, which runs straight into a standard MM phono input with no extra equipment needed, see the 20X2A-H.
Special Annealing Magnetic Circuit
The magnetic circuit at the core of any MC cartridge uses pure iron for its stable magnetic properties, but the process of shaping and machining that iron distorts its crystal structure at an atomic level, reducing magnetic permeability. Dynavector’s Special Annealing process – refining the temperature, environment, duration and heating/cooling rates used to heat-treat each part – restores that distorted structure, for an expansive, resonant sound without the loss of resolution a generic annealing process would leave behind.
Neodymium magnet with Softened Magnetism
A powerful neodymium magnet gives the 20X2A its output, with Dynavector’s patented Softened Magnetism technology reducing the distortion and harsh, edgy sound that rare-earth magnets can otherwise introduce – for a clear separation of sound without sacrificing drive.
Hard aluminium pipe cantilever with Micro-Ridge stylus
A hollow, hard aluminium pipe cantilever keeps the moving mass of the vibration system low, for a wide bandwidth and clear high-frequency reproduction. The Micro-Ridge stylus tip that rides on the end of it has a minute 2-micron radius of curvature where it actually contacts the groove, with a band-like shape chosen for its resistance to abrasion and consistent performance over a long stylus life.
Low output, for the true MC character
The 20X2A-L drops output to 0.3mV, using the same PCOCC coil wire as Dynavector’s higher-end models, and a recommended load impedance of 30Ω or more makes it compatible with most head amplifiers and MC step-up transformers.
- Output: 0.3mV
- Recommended load impedance: 30Ω or higher
Best for: owners of a dedicated MC phono stage or step-up transformer who want the fuller, more distinct MC presentation.
Features
Cartridge design
Special Annealing Magnetic Circuit
Restores magnetic permeability lost during machining, for an expansive, distortion-free sound.
Neodymium magnet with Softened Magnetism
Reduces the harshness of a rare-earth magnet while keeping its output and drive.
Hard aluminium pipe cantilever with Micro-Ridge stylus
A hollow, low-mass cantilever paired with a 2-micron radius stylus tip for a wide, clear high-frequency response.
Output & connection
Low output coil winding
0.3mV output, using the same PCOCC coil wire as Dynavector’s higher-end models.
Built for MC phono stages
Compatible with load impedances from 30Ω upward, including most head amplifiers and step-up transformers.
Specifications
| Brand | Dynavector |
|---|---|
| Type | Low output MC, flux damper & softened magnetism |
| Output Voltage | 0.3mV (1kHz, 5cm/sec) |
| Channel Separation | 25dB (1kHz) |
| Channel Balance | 1.0dB (1kHz) |
| Frequency Response | 20Hz–20kHz (±2dB) |
| Compliance | 12mm/N |
| Tracking Force | 1.8–2.2g |
| Impedance | 5 ohms |
| Recommended Load Impedance | >30 ohms |
| Cantilever | 6mm length hard aluminium pipe |
| Stylus | Micro-Ridge, nude diamond |
| Weight | 9.2g |
In the box
- 20X2A-L cartridge
- Mounting screws (M2.5)
- Instruction manual
- Warranty card
