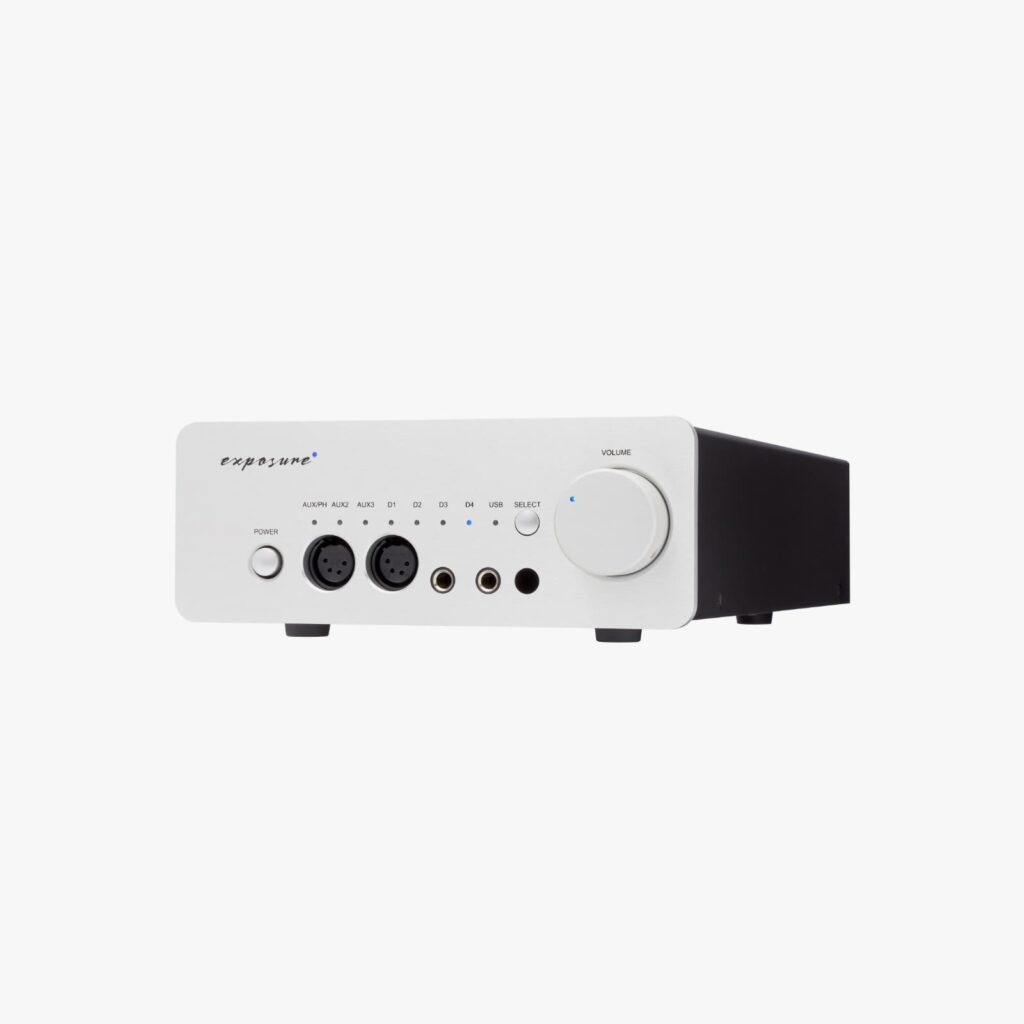

Exposure XM HP Headphone Amplifier


The Exposure XM HP headphone amplifier is equipped with multiple analogue and digital inputs, including a moving magnet phono stage.

Need some help? Call 0161 399 0993 or contact us. We are happy to answer any questions you have.

Request a part exchange or price match.

Brand: Exposure Category:


The XM Series of components may be small in size but they are big on features and performance. With unmatched levels of sound quality and clarity, the XM Series conveys the art of music replay with outstanding realism. The Exposure XM HP headphone amplifier has a useful mix of analogue and digital inputs, including a moving magnet phono stage.

  • Custom-made toroidal power transformer
  • High quality all aluminium casework and extruded front panel
  • High quality resistors and capacitors used in the signal path
  • All discrete audio output stage with high drive capability for low impedance headphones
  • Two 6.35 mm jacks and two XLR sockets, allowing 2 pairs of headphones to be used at one time
  • Moving magnet phono and two line level inputs
  • Two coaxial BNC and two optical Toslink inputs and one USB audio class 2 input with DSD
  • Separate preamplifier output
  • Remote control

Additional information



Black, Titanium

Audio Inputs

1 x USB type B, 1 x MM phono, 2 x coaxial digital BNC, 2 x optical digital Toslink, 2 x RCA

Audio Outputs

1 x RCA (fixed), 1 x RCA (variable), 2 x 4 pin XLR, 2 x 6.35 mm headphone jack

Frequency Response

20 Hz – 20 kHz ±0.5 dB


<0.005% for 1.3 V @ 1 kHz THD

Channel Separation

>60 dB @ 20 kHz

Signal-to-Noise Ratio

>92 dB

Power Consumption

<15 W

Dimensions (WxDxH)

218 x 363 x 89 mm


4 kg


3 years

Documents and downloads

XM HP data sheet
