About the Graham Audio Chartwell LS3

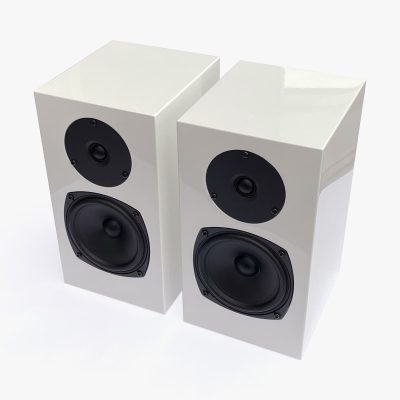

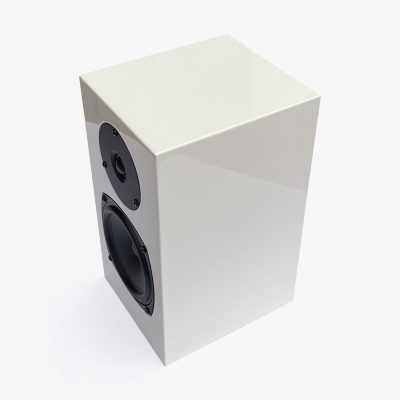

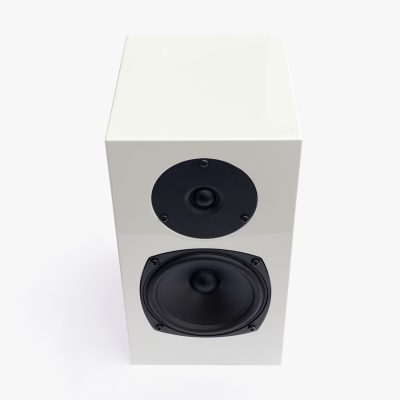

The Chartwell LS3 is Graham Audio’s modern take on the compact monitor — a sequel to the earlier Swisstone LS3, significantly upgraded and now carrying the Chartwell name that has long been associated with British monitor excellence.

Where the LS3/5 and LS3/5A are faithful reproductions of BBC specifications, the Chartwell LS3 is free to take a different path. It shares their compact dimensions and sealed enclosure philosophy, but uses contemporary drive units chosen for their performance rather than their historical authenticity. The bass driver uses a polypropylene diaphragm and die-cast aluminium chassis with an exceptionally smooth frequency response — smooth enough that the crossover can be kept simple, which directly benefits transparency and timing. The tweeter is a bespoke unit custom-built for Graham Audio by SEAS.

The result is a speaker that sits naturally in the Graham Audio family without pretending to be something it isn’t. It is not a BBC monitor — it is a contemporary compact standmount designed by Derek Hughes, built to the same standard of engineering and finish, and voiced for the same musical values. Available in black or white high-gloss paint, with a magnetically attached grille that leaves the front baffle completely clean when removed.

Features

  • Two way sealed enclosure
  • Thin wall damped construction
  • 110 mm polypropylene mid / bass and 19 mm dome tweeter
  • 83 dB sensitivity and 8 Ω impedance
  • Available in black or white gloss paint finishes

Specifications

BrandGraham Audio
ColourBlack, White
Operating Principle2 way sealed enclosure
ConstructionThin wall damped construction
Speaker Drivers1 x 110 mm polypropylene bass / midrange, 1 x 19 mm dome tweeter

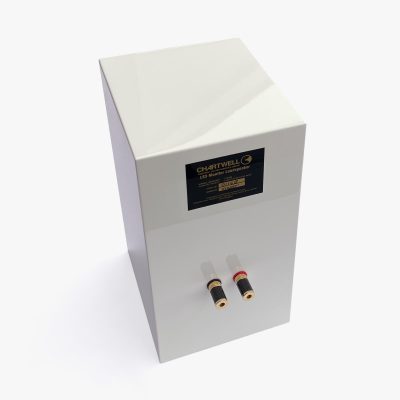

Audio InputsMulti-way binding posts
Sensitivity83 dB
Impedance8 Ω
Frequency Response70 Hz – 20 kHz ±3 dB
Maximum SPL96 dB for a pair at 2 m
Recommended Amplifier Power25 – 50 W
Dimensions (W x D x H)165 x 195 x 304 mm
Weight5.3 kg
