Graham Audio Chartwell Sub 6 Subwoofers
Usually dispatched the same day. Delivery & returns
£2,720.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Graham Audio Chartwell Sub 6
Designed by Derek Hughes and hand-built using Graham Audio’s signature thin-wall, damped cabinet construction, the Chartwell Sub 6 is sold in matched pairs to complement LS3/5 and LS3/5a loudspeakers. Available exclusively in black – a finish that blends effortlessly with any system – each enclosure is meticulously tuned to extend low-frequency performance without compromising the clarity and natural balance that these classic monitors are known for.
Front-facing reflex ports deliver tight, articulate bass that integrates seamlessly with your main speakers, adding scale, depth and authority to your music. With the Sub 6 handling the most demanding low-end content, your LS3/5 or LS3/5a can perform with greater ease and refinement across the rest of the frequency range.
Features
- Passive design — no separate amp, clean aesthetic
- Front-facing reflex port — seamless placement and easy integration
- High-quality crossover components — air-core inductors and polypropylene caps preserve clarity and minimize distortion

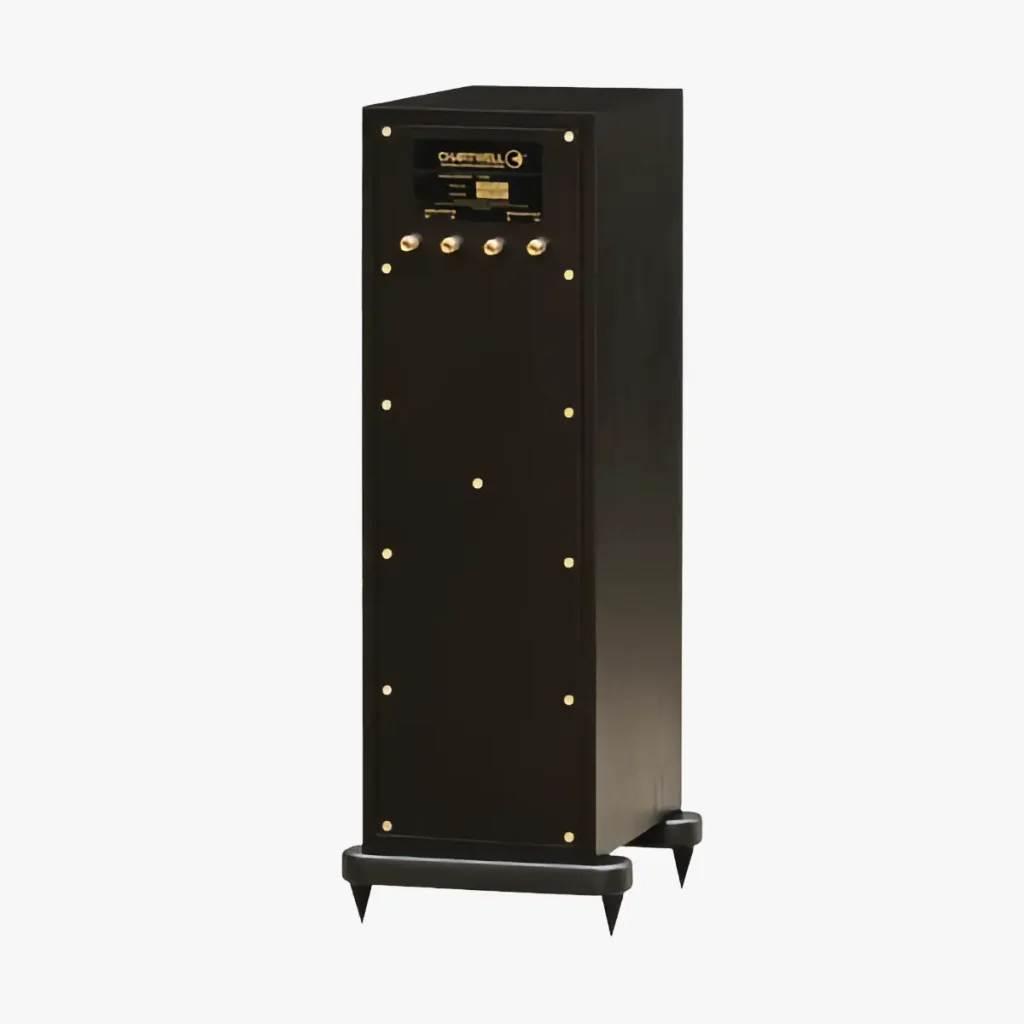

- Rear amplifier input and speaker output — simple, elegant signal pass-through
- Adjustable feet or spikes — optimise placement and stability
- Designed to match LS3/5 and LS3/5a — matches perfectly in tonal balance and sensitivity
Frequently Asked Questions
Does the sub require a separate amp?
No – it’s passive. You connect your existing amp to the subs, then feed your main speakers, keeping cabling clean and straightforward.
Where should I place the Sub 6?
Ideally directly under your LS3/5 or LS3/5a, using the included feet or optional spikes. The front port allows flexibility in tight setups.
Will the extra bass harm my nearfield listening?
The Sub 6 is designed for musical extension, not boom. If placement causes bass buildup, you can adjust toe-in or move them further away from the wall.
Does the Sub 6 allow me to play my LS3/5 or LS3/5A at higher volume levels?
Yes. By crossing over at 120 Hz, the Sub 6 takes the most demanding low-frequency work away from your LS3/5 or LS3/5A. This not only extends bass performance but also frees the midrange to sound cleaner and more dynamic, allowing higher playback levels without strain.
Specifications
| Attributes | Value |
|---|---|
| Brand |
Graham Audio |
| Colour |
Black Oak |
| Audio Inputs |
Gold-plated speaker binding posts |
| Audio Outputs |
Gold-plated speaker binding posts |
| Crossover |
4th order bandpass, 120 Hz |
| Frequency Response |
35 Hz – 100 Hz |
| Impedance |
8 Ω |
| Sensitivity |
84 dB |
| Recommended Amplifier Power |
30 W – 80 W |
| Dimensions (W x D x H) |
190 x 270 x 600 mm |
