Amphion Helium 520C Centre Speaker
Horizontal centre channel voice-matched to the Helium range, keeping dialogue and on-screen effects seamlessly integrated with your front left and right speakers.
Usually dispatched in 3-5 days. Delivery & returns
£1,100.00
including delivery and VAT
We’re an authorised Amphion dealer. In line with Amphion’s terms, this model is available to order for collection from Stockport, by appointment. For delivery, or if you’d like to talk through your room and system first, call 0161 399 0993 or contact us.
We also offer part exchange and price matching.
About the Helium 520C
The Amphion Helium 520C is a horizontal centre channel built to sit above or below a screen without compromising the front-stage coherence of a Helium system. Its MTM (tweeter between two woofers) layout is specifically designed for this orientation, keeping dispersion even side to side rather than the vertical spread of a stand-mount speaker turned on its side.
It shares its acoustic components with the rest of the Helium range, including the fifth-generation UDD waveguide, so dialogue and effects panning across the front three channels sound like they’re coming from a single, continuous source rather than three mismatched boxes. The low crossover point keeps the handover between tweeter and woofers out of the vocal range, which is where mismatched centre channels usually give themselves away.
Despite the compact, low-profile cabinet, the vented design still delivers real extension rather than a thin, boxed-in midrange – useful for a centre channel, which tends to carry the bulk of a film’s dialogue and midrange energy. Like the rest of the Helium series, it’s hand-built in Finland.
Pair it with a pair of Helium 510, 520 or 720 for a matched three-channel front stage, or use it as a dedicated dialogue channel in an existing system that needs clearer speech without adding a mismatched voicing to the mix.
Features
- MTM driver layout designed for stable, even dispersion in horizontal placement
- Matched voicing with Helium 510/520/720 for seamless front-stage integration
- Fifth-generation UDD waveguide for wide, consistent off-axis performance
- Low crossover point to keep the tweeter/woofer handover out of the vocal range
- Vented cabinet for extension without a boxy, congested midrange
- Hand-built in Finland with premium build quality
- Available in multiple finishes with custom grille colours
Specifications
| Brand | Amphion |

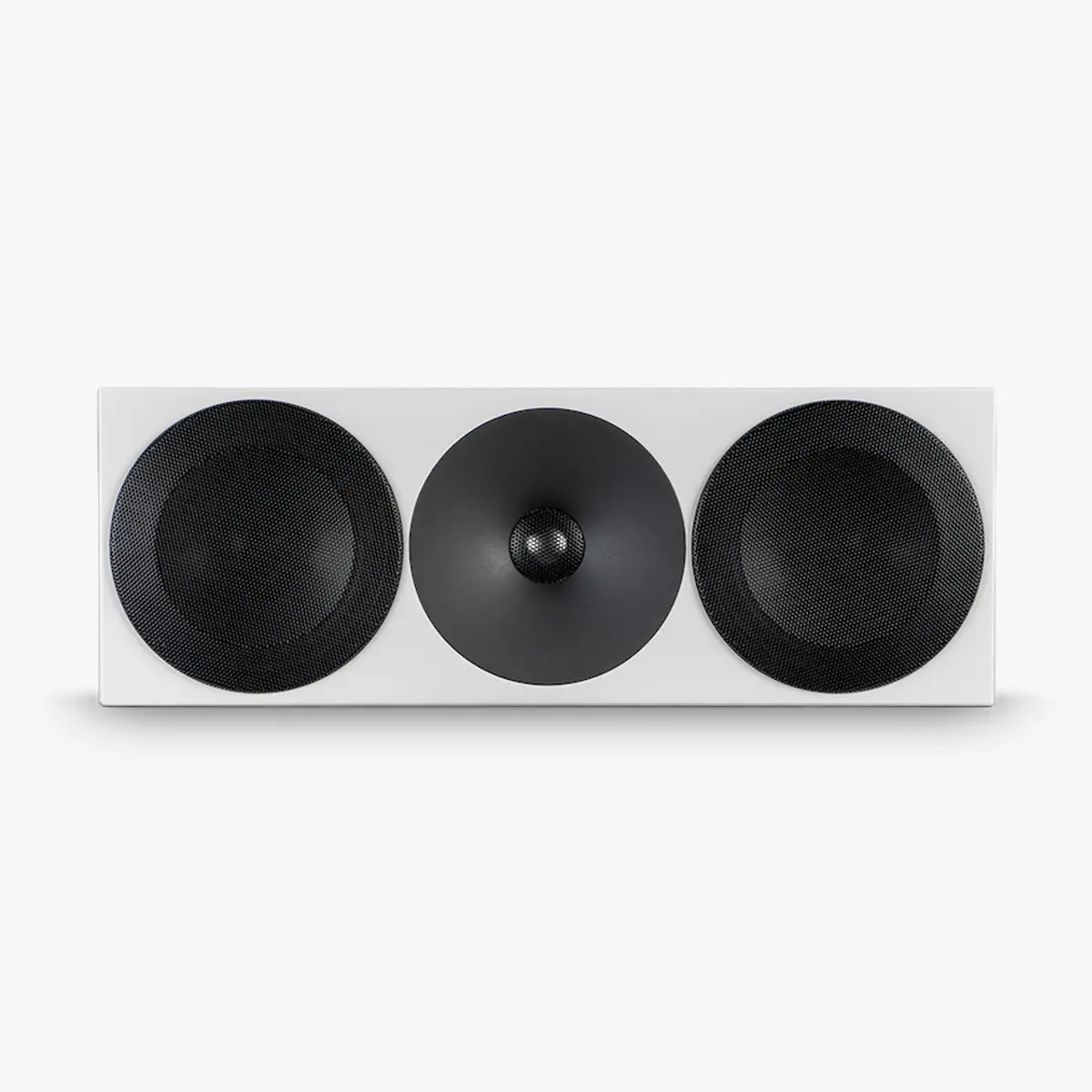

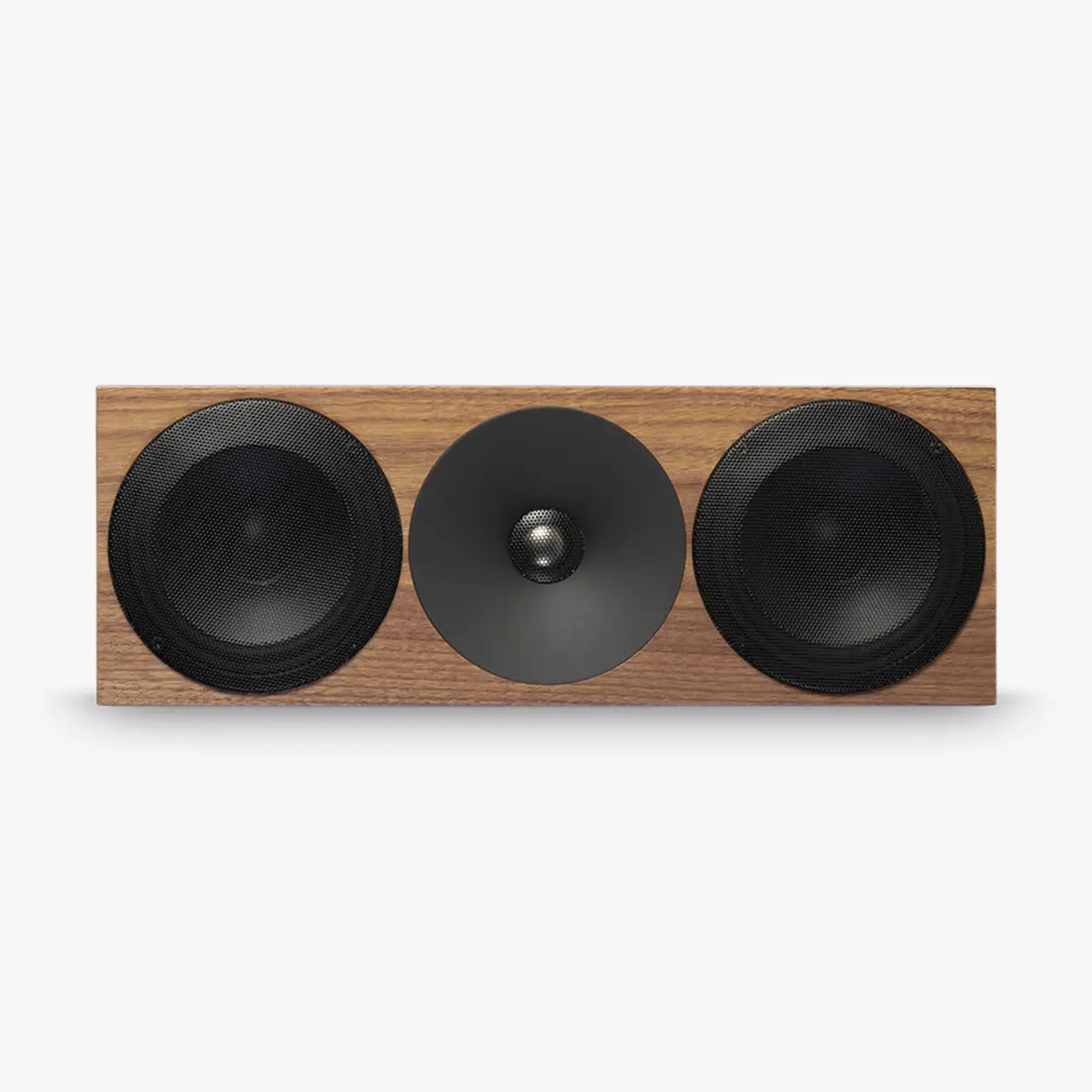

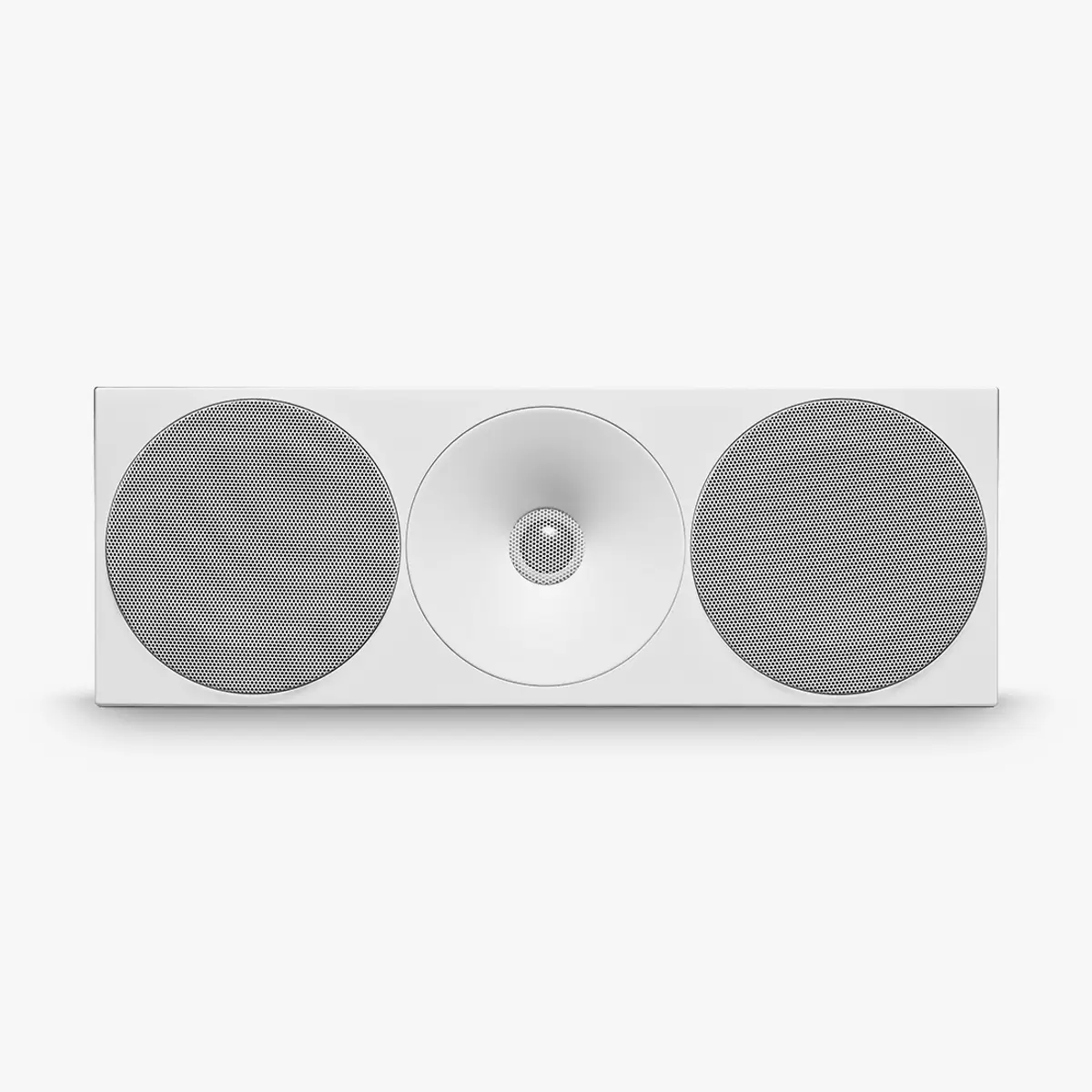

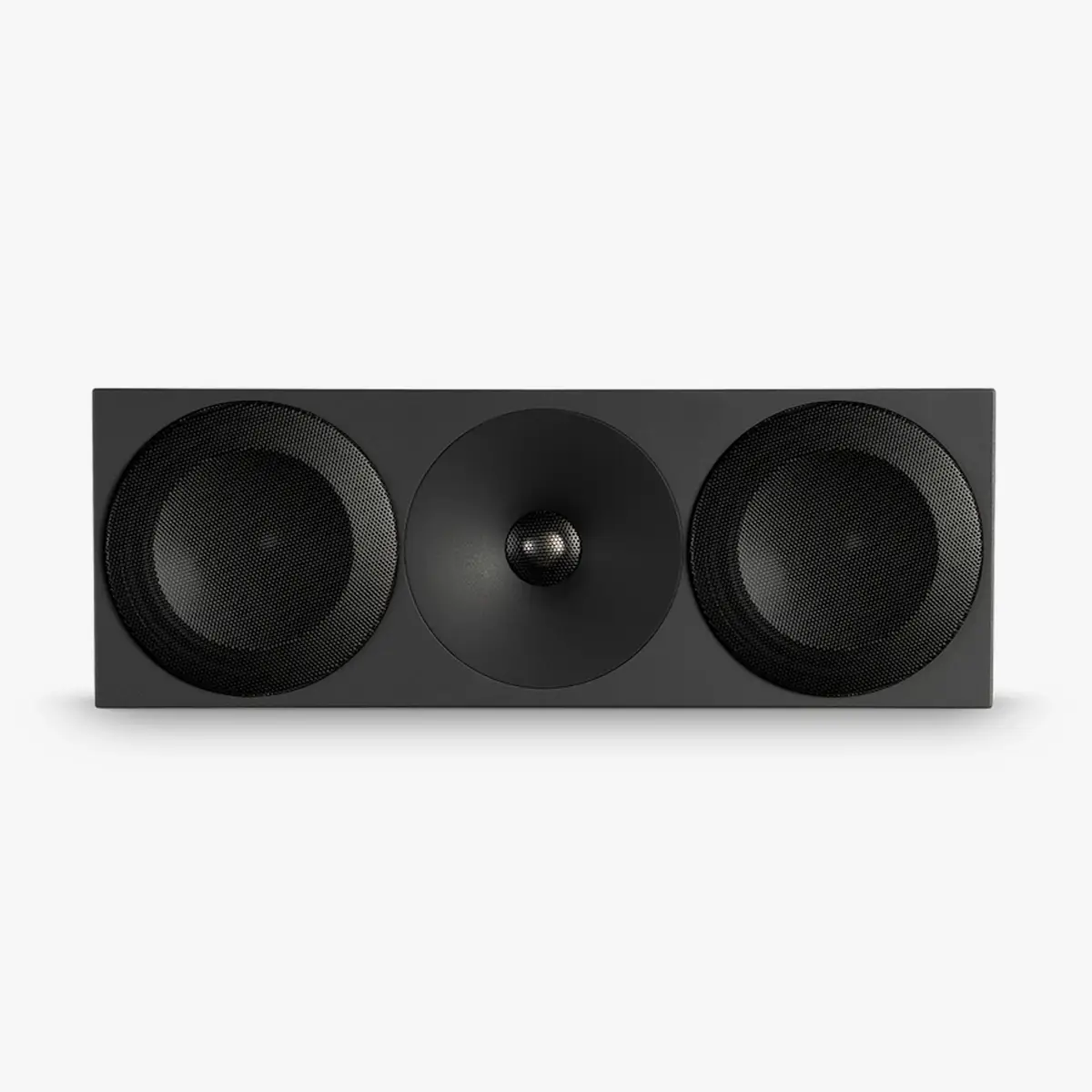

| Colour | Black, Full White, Standard White, Walnut |
| Grille colour | Black, White, Custom RAL colour |
| Operating Principle | 2 way, Vented |
| Speaker Drivers | 1″ titanium tweeter, 2x 5.25″ paper woofer |
| Crossover | 1.6 kHz |
| Impedance | 4 Ω |
| Sensitivity | 90 dB |
| Frequency Response | 48 Hz – 25 kHz -6dB |
| Recommended Amplifier Power | 10 W – 150 W |
| Dimensions (H x W x D) | 160 mm x 452 mm x 265 mm / 6.3″ x 17.8″ x 10.4″ |
| Grille protrusion | 8 mm / 0.3″ |
| Weight | 9 kg (19.8 lbs) |
| Warranty | 5 years |
Downloads
Frequently Asked Questions
What makes the Helium 520C suitable as a centre channel rather than a repurposed stand-mount speaker?
Its MTM layout is designed specifically for horizontal placement, so dispersion stays even left to right when the cabinet is turned on its side above or below a screen – a genuine stand-mount speaker loses this even dispersion when rotated.
Does it have to be paired with Helium 510s, or can it work with other Amphion models?
It shares its acoustic design with the Helium range, so it integrates most closely with Helium 510, 520 and 720 speakers, but its neutral voicing also makes it a sensible centre-channel match for other Amphion series.
Will the horizontal layout affect sound if I’m not sitting dead centre?
No. The MTM layout and UDD waveguide are designed to maintain even dispersion off-axis, so dialogue stays clear from seats away from the centre position, not just the sweet spot.
How should I position it relative to my screen?
Directly above or below the screen, as close to ear height as the setup allows, keeping the front baffle roughly in line with your left and right speakers.
