Exposure VXN Phono Stage
Exposure’s flagship phono stage, with front-panel MM/MC switching and a fully discrete signal path. Requires the VXN power supply.
Usually dispatched in 3-5 days. Delivery & returns
£2,500.00
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
Delivery & Returns
We offer free UK delivery on all orders. Most orders are shipped with Royal Mail Tracked 24 or DPD Next Day services, but we sometimes use other delivery options for large or heavy items. We’ll let you know as soon as your order has shipped and provide you with the tracking details.
For click & collect items, we’ll notify you by email when your order is ready for collection. We can also provide delivery in person on click & collect orders — just ask if you’d like us to arrange this.
We want you to be delighted with your purchase. If you change your mind for any reason, you can return any item within 30 days for a full refund, provided it’s in unmarked condition with all packaging and accessories.
For full details of our policies, please see our Delivery and Returns pages.
Contact us
Part Exchange
Price Match
About the VXN Phono Stage
The VXN is Exposure’s flagship phono stage, built as a standalone development of the phono circuit in their long-running XM3. Exposure’s designers added more transistors in parallel in the moving coil stage to lower noise, and moved to polystyrene and polypropylene capacitors throughout the audio path in place of the electrolytics used elsewhere in the range.
Moving magnet and moving coil cartridges get separate input sockets, with a front-panel switch between them — so two turntables, or two arms, can stay connected and you flick between them rather than swapping cables. Loading and gain are set via DIP switches on the rear panel: MM loading is fixed at 47kΩ/220pF with four gain options (40/46/54/55dB), while MC gets full flexibility, with loading adjustable across 12 steps from 32Ω to 1,000Ω and gain options of 54/60/63/66dB. That range covers most moving coil cartridges on the market, including low-output and unusually-loaded designs.
Power supply
The VXN phono stage has no mains inlet of its own — it’s designed to run from the separate VXN power supply. The phono stage has two DC inputs, purpose-designed for the two outputs on a single VXN power supply, but they also allow a second power supply to be added, giving each channel its own independent feed. Most customers will run the standard single shared supply.
Features
- Fully discrete signal path — the phono amplification circuit uses no ICs; the only op-amps on the board sit in the power supply regulation stage, not the audio path, each channel getting a pair of hybrid regulators preceded by active “gyrator” smoothing to keep hum off the regulated lines
- More transistors run in parallel in the moving coil stage than Exposure’s XM3, for lower noise
- Polystyrene and polypropylene capacitors used throughout the signal path, including the RIAA equalisation stage

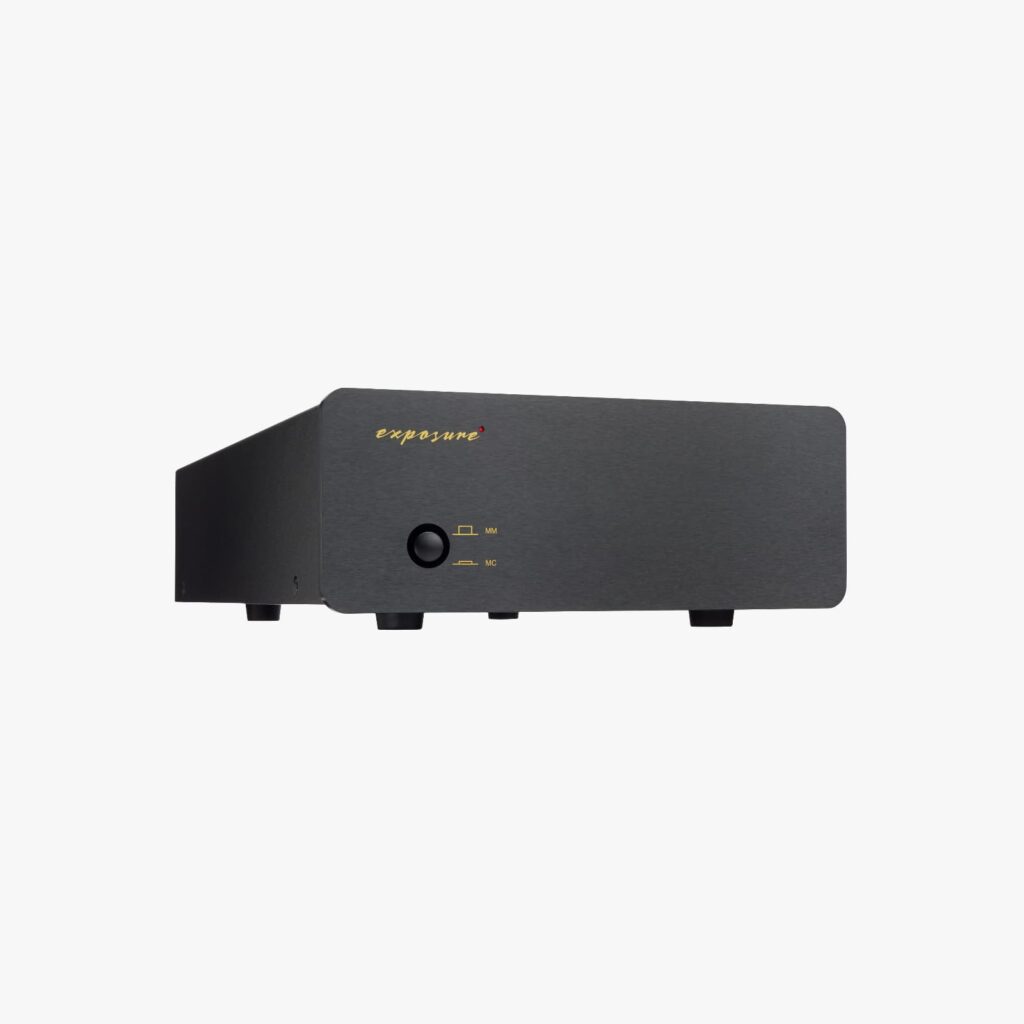

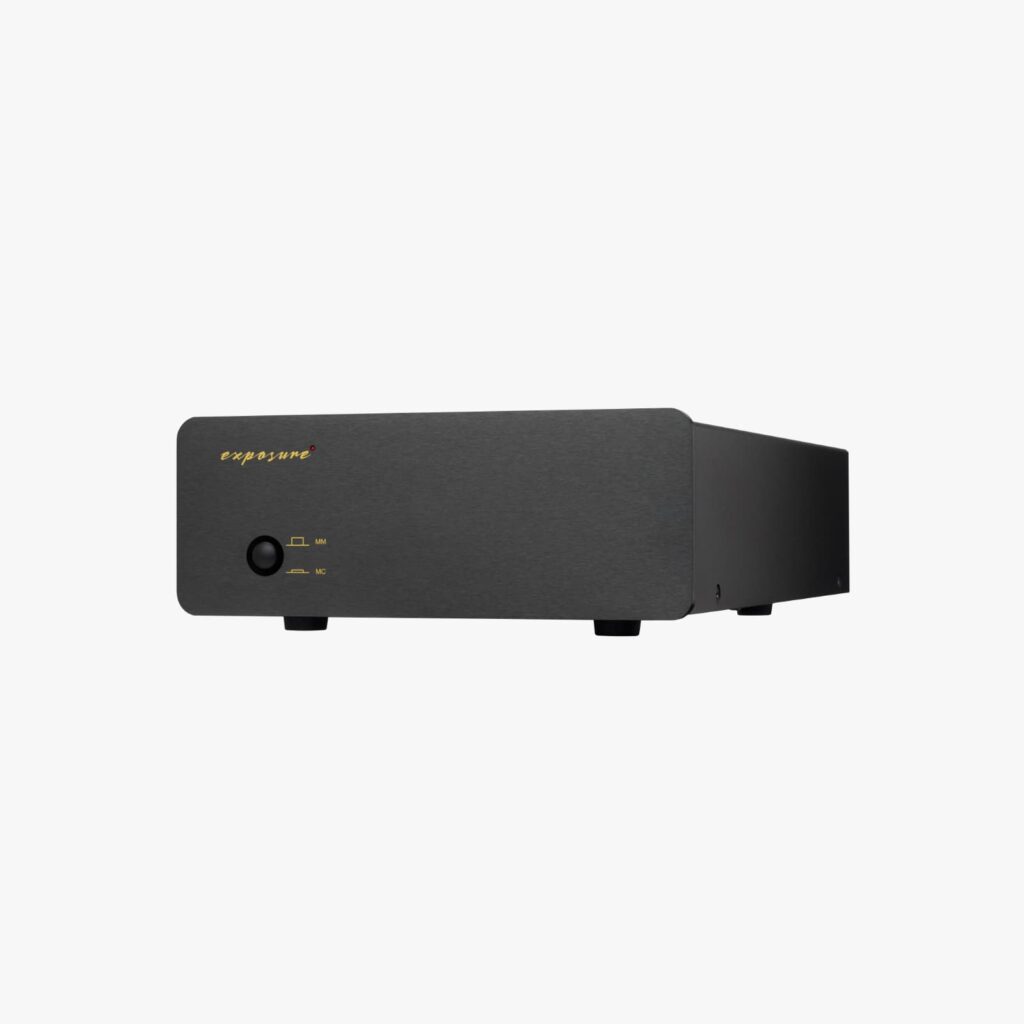

- Separate MM and MC input sockets, switchable from the front panel

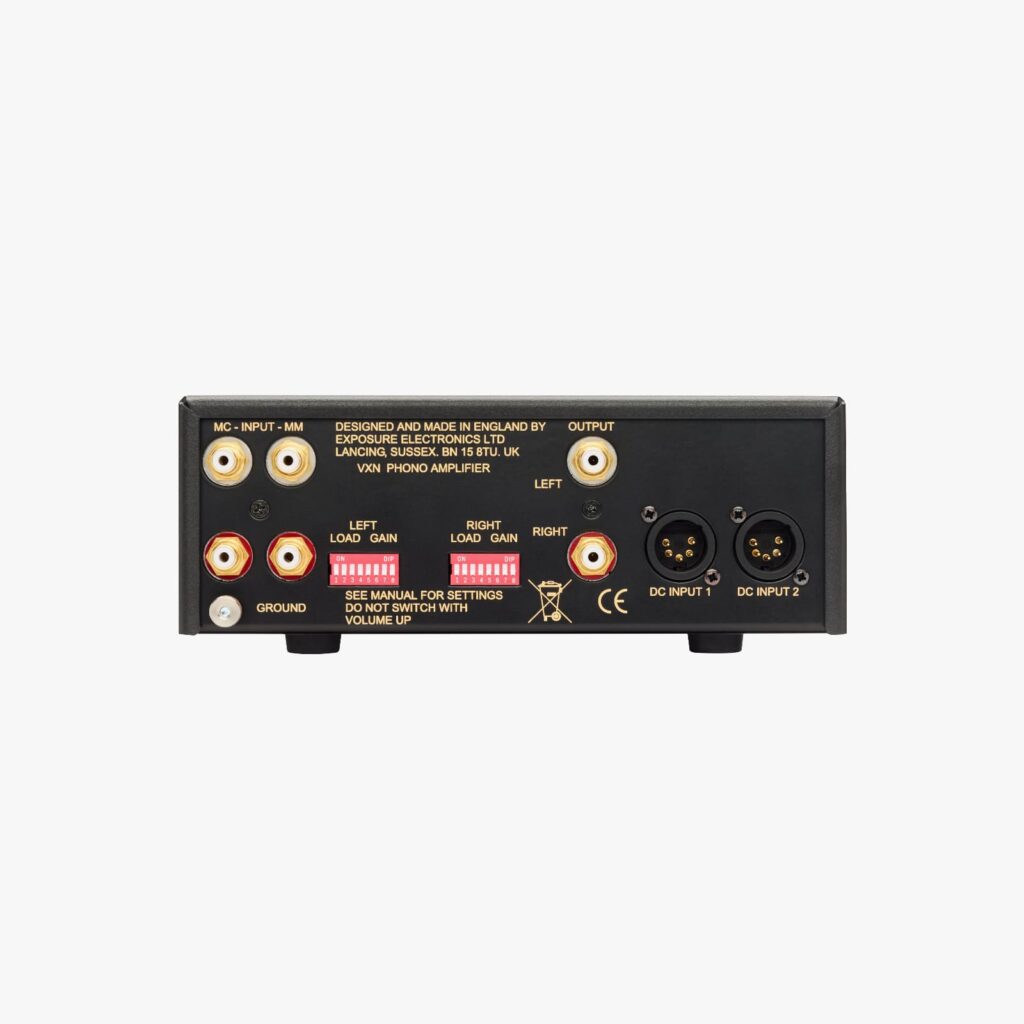

- Rear-panel DIP switches for loading and gain — MM fixed at 47kΩ/220pF (40/46/54/55dB gain); MC adjustable across 12 loading steps from 32Ω–1,000Ω (54/60/63/66dB gain)
- High quality all-aluminium casework and extruded front panel
- Three year guarantee
- Available in black only
Specifications
| Attributes | Value |
|---|---|
| Brand |
Exposure |
| Colour |
Black |
| Output Level |
500 mV (nominal), 7.8 V (max) |
| Audio Inputs |
1 x RCA (moving coil), 1 x RCA (moving magnet) |
| Audio Outputs |
1 x RCA |
| Output Impedance |
50 Ω |
| Distortion |
<0.005% THD |
| Frequency Response |
30 Hz – 20 kHz ±0.25 dB |
| Input Sensitivity |
5 mV input for 500 mV output (moving magnet 40 dB gain), 500 uV input for 500 mV output (moving coil 60dB gain) |
| Signal-to-Noise Ratio |
>72 dB (moving coil), >82 dB (moving magnet) |
| Power Consumption |
<10 W |
| Dimensions (W x D x H) |
218 x 348 x 89 mm |
| Weight |
2 kg |
| Warranty |
3 years |
