Matrix Audio mini-i Pro 4 Music Streamer
The mini-i Pro 4 is Matrix Audio’s compact streaming DAC and headphone amplifier, built around an ESS ES9039Q2M DAC with fully balanced 4.4mm and 6.35mm headphone outputs. Digital inputs cover optical, coaxial, HDMI ARC and USB, alongside an RCA analogue input and variable XLR/RCA outputs that let it work as a preamp. Roon Ready and it supports most popular streaming services.
Usually dispatched in 2-3 days. Delivery & returns
£899.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the mini-i Pro 4
The mini-i Pro 4 is Matrix Audio’s compact streaming DAC and headphone amplifier – a network streamer, DAC, fully balanced headphone amp and preamp built into a single small chassis. It brings together digital inputs, an RCA analogue input and Matrix Audio’s MA Player streaming platform, with a 3.46-inch touchscreen and RM5 remote for everyday control.
Sound quality
At the core is ESS’s ES9039Q2M DAC chip, paired with a quad-core Cortex-A55 processor running Matrix Audio’s own MA Player streamer OS. Careful attention to the analogue circuit layout gives the XLR output a 127dB signal-to-noise ratio and vanishingly low distortion, so the conversion stage stays out of the way of whatever’s connected downstream.
Headphone amplifier
Two headphone outputs cover most headphones without an adapter: 4.4mm balanced and 6.35mm single-ended, both run from a fully balanced amplifier circuit. The balanced output delivers up to 2.2W into a 33-ohm load, enough for demanding planar and high-impedance headphones, with a shared +14dB gain stage that keeps quieter in-ears usable too.
Built to fit the system, not dictate it

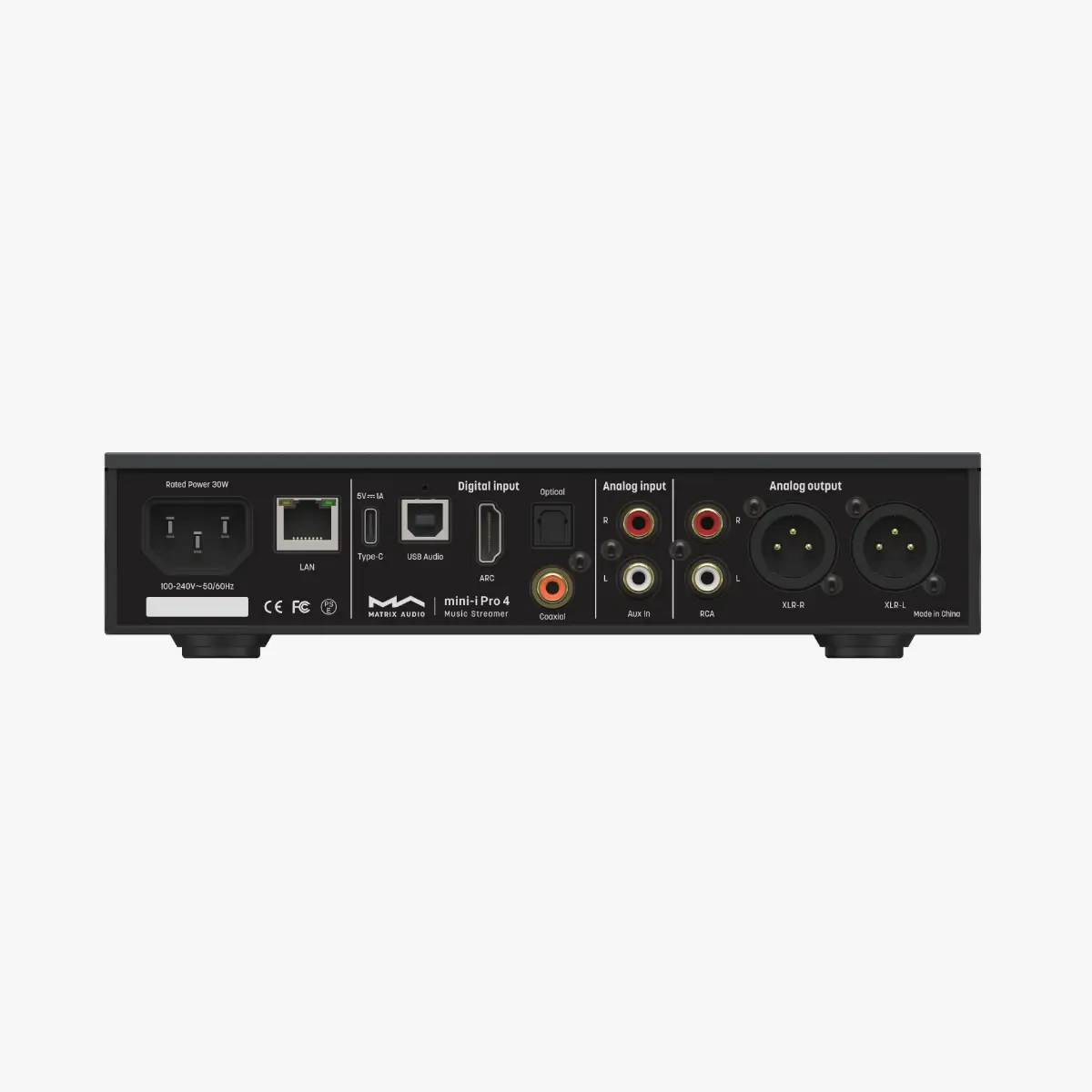

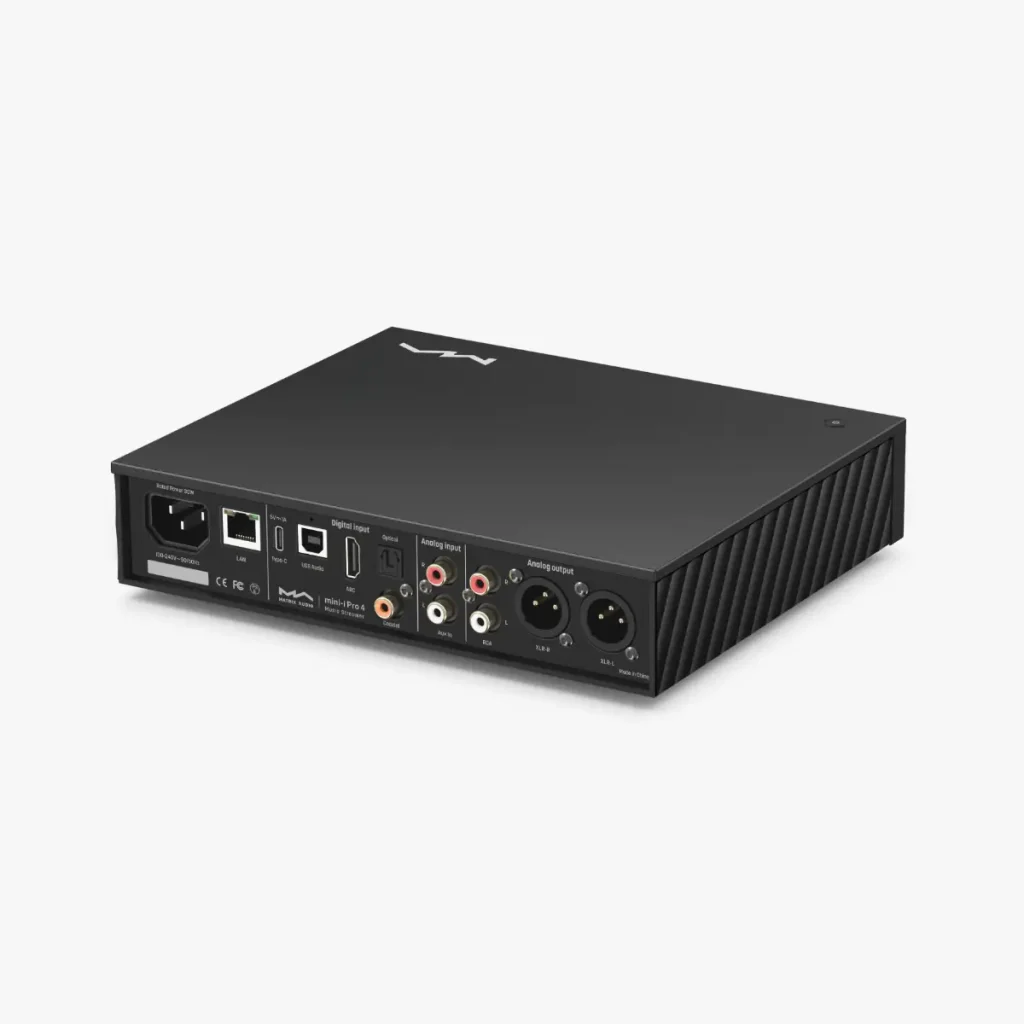

Digital inputs cover optical, coaxial and HDMI ARC – the HDMI input supports CEC, so the mini-i Pro 4 can share power, volume and playback control with a TV. A USB-C port doubles as a USB DAC input for a computer or phone and a storage port for USB drives, and a single RCA analogue input with three selectable gain levels welcomes a turntable’s phono stage or another line-level source. XLR and RCA outputs run at a variable level, so the mini-i Pro 4 can work as a preamp in its own right, feeding a power amp or active speakers directly.
Storage and everyday use
Music streams over Gigabit Ethernet or dual-band Wi-Fi, with Roon Ready certification, native TIDAL, Qobuz and HIGHRESAUDIO login, plus TIDAL Connect, Spotify Connect, AirPlay 2, DLNA/UPnP and internet radio from vTuner and Radio Paradise. A USB drive or NAS gets indexed automatically into a searchable library in the MA Remote App, and a full MQA decoder is built in for anyone with MQA-encoded material. The 3.46-inch touchscreen handles day-to-day control directly on the unit, showing track metadata and input/output status, with the RM5 remote and MA Remote App covering everything else.
Features
Conversion & headphone amp
ES9039Q2M DAC
ESS’s DAC chip paired with a quad-core Cortex-A55 processor running Matrix Audio’s own streamer OS.
Fully balanced headphone amplifier
4.4mm balanced and 6.35mm single-ended outputs, up to 2.2W into 33Ω.
Variable XLR and RCA outputs
Digitally-controlled output level lets the mini-i Pro 4 work as a preamp.
Inputs & connectivity
Optical, coaxial and HDMI ARC inputs
HDMI ARC includes CEC, for shared power and volume control with a TV.
USB-C DAC and storage port
Doubles as a USB DAC input for a computer or phone, and a storage port for USB drives.
RCA analogue input
Three selectable gain levels, for turntables and other line-level sources.
Gigabit Ethernet and dual-band Wi-Fi
Wired for the most stable streaming, wireless when cabling isn’t practical.
Sources & streaming
MA Player streamer OS
Matrix Audio’s own Linux-based platform runs everything from local files to internet radio.
Roon Ready and streaming services
Native TIDAL, Qobuz and HIGHRESAUDIO login, plus TIDAL Connect, Spotify Connect, AirPlay 2, DLNA/UPnP, vTuner and Radio Paradise.
MQA full decoder
Built-in decoding for MQA and MQA Studio streams and files.
USB and NAS library
Automatically indexed into a searchable library in the MA Remote App.
Everyday use
3.46-inch touchscreen
Shows track metadata, input and output status, for control directly on the unit.
RM5 remote control
A programmable button adds a shortcut to whichever function is used most.
Specifications
| Brand | Matrix Audio |
|---|---|
| Colour | Black |
| Digital Inputs | Coaxial, optical, HDMI ARC, USB-C |
| Coaxial/Optical Input Resolution | PCM up to 24-bit/192kHz, DSD64 via DoP |
| HDMI ARC Input Resolution | PCM up to 24-bit/192kHz, with CEC control |
| USB Input Resolution | PCM up to 24-bit/768kHz, MQA up to 24-bit/384kHz (MQA/MQA Studio), DSD up to DSD512 native, DSD256 via DoP |
| Analogue Input (RCA) | 3 selectable gain levels, max input 2.1Vrms |
| XLR Output | 4.4Vrms @0dB, SNR 127dB A-weighted, THD+N <0.00008% @1kHz, crosstalk >-146dB |
| RCA Output | 2.2Vrms @0dB, SNR 121dB A-weighted, THD+N <0.00015% @1kHz, crosstalk >-133dB |
| 4.4mm Balanced Headphone Output | <22Ω output impedance, 2200mW @33Ω / 950mW @300Ω / 500mW @600Ω (1% THD), +14dB gain, SNR 117dB A-weighted |
| 6.35mm Headphone Output | <11Ω output impedance, 1200mW @33Ω / 260mW @300Ω / 130mW @600Ω (1% THD), +14dB gain, SNR 116dB A-weighted |
| Network | Gigabit Ethernet, 2.4GHz/5GHz Wi-Fi |
| USB | USB-C, 5V/1.5A, supports FAT, FAT32, exFAT and NTFS filesystems |
| Local Playback Formats | MP3, WMA, WAV, AIF/AIFC/AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF and CUE |
| Local Playback Resolution | PCM up to 24-bit/768kHz, MQA up to 24-bit/384kHz, DSD up to DSD512 |
| Streaming Support | Roon Ready, TIDAL Connect, Spotify Connect, AirPlay 2, DLNA/UPnP, vTuner and Radio Paradise (plus native TIDAL, Qobuz and HIGHRESAUDIO login via the app) |
| Control App | MA Remote App (iOS, iPadOS and Android) |
| Remote | RM5 remote, with a programmable button |
| Display | 3.46-inch LCD touchscreen |
| Power Voltage | 100–240V 50/60Hz |
| Standby Consumption | <5W |
| Max Consumption | <30W |
| Dimensions (W x D x H) | 224 x 186 x 53 mm |
| Weight | 1.3 kg |
In the box
- RM5 remote control
- Power cable
- Quick start guide
- Warranty card
