About the Argon 5C

The Amphion Argon 5C is a horizontal centre channel built to sit above or below a screen without breaking the front-stage coherence of an Argon system. Like the Helium 520C, it uses an MTM (tweeter between two woofers) layout designed for this orientation, so dispersion stays even side to side rather than the vertical spread you’d get from turning a stand-mount speaker on its side.

It shares its acoustic components with the wider Argon range, including the fifth-generation UDD waveguide, so dialogue and effects panning across the front three channels sound continuous rather than coming from three mismatched boxes. The low crossover point keeps the tweeter/woofer handover out of the vocal range, which is where mismatched centre channels tend to give themselves away.

The aluminium woofers give it a slightly firmer, more controlled bottom end than the Helium 520C’s paper drivers, with a touch more headroom to match the Argon range’s higher power handling – useful in a centre channel, which typically carries the bulk of a film’s dialogue and midrange energy. Like the rest of the Argon series, it’s hand-built in Finland.

Pair it with Amphion Argon-series front speakers for a matched three-channel front stage, or use it as a dedicated dialogue channel in an existing system that needs clearer speech without adding a mismatched voicing to the mix.

Features

  • MTM driver layout designed for stable, even dispersion in horizontal placement
  • Matched voicing with Amphion Argon-series speakers for seamless front-stage integration
  • Fifth-generation UDD waveguide for wide, consistent off-axis performance
  • Low crossover point to keep the tweeter/woofer handover out of the vocal range
  • Aluminium woofers for a firmer, more controlled low end with extra headroom
  • Vented cabinet for extension without a boxy, congested midrange
  • Hand-built in Finland with premium build quality
  • Available in multiple finishes with custom grille colours

Specifications

BrandAmphion

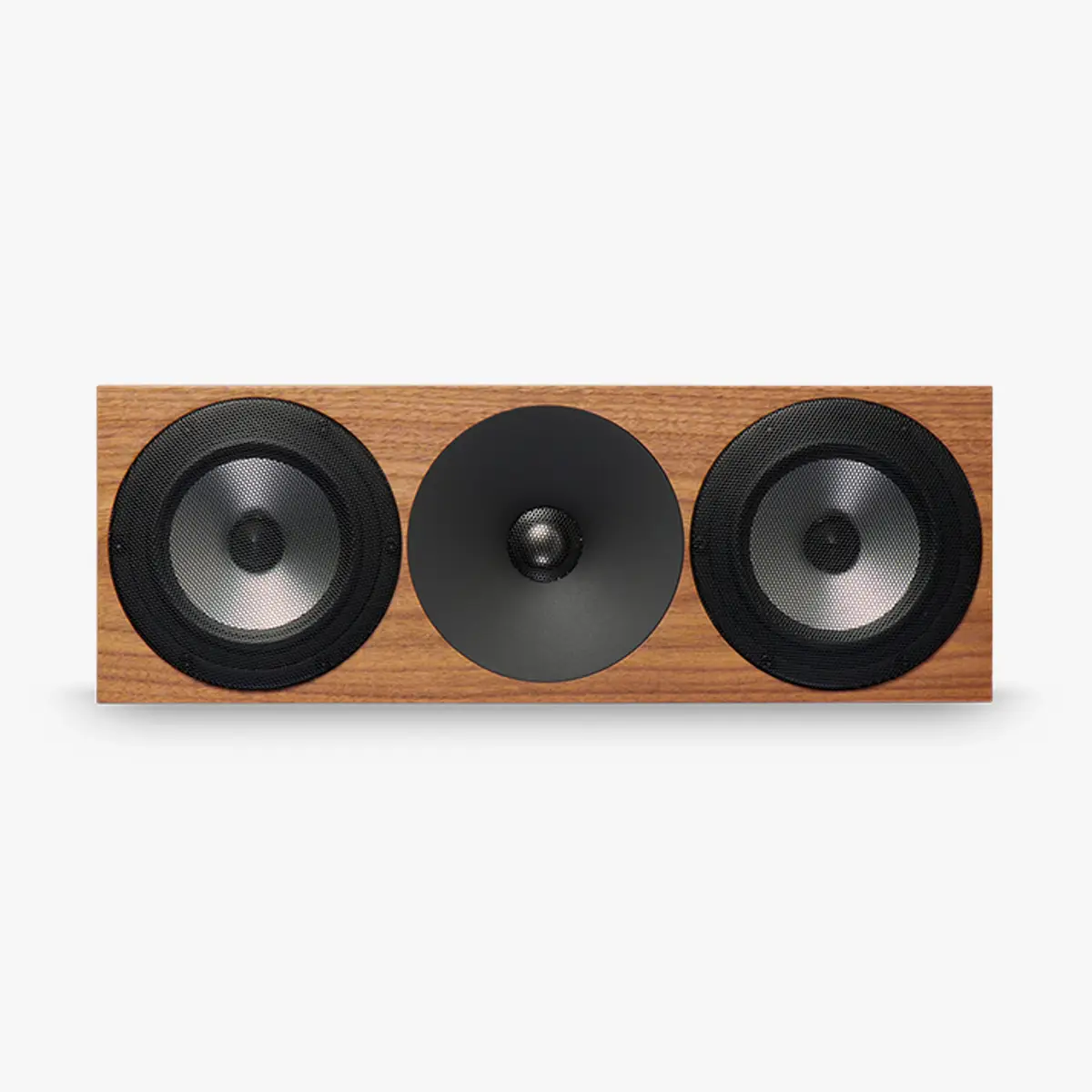

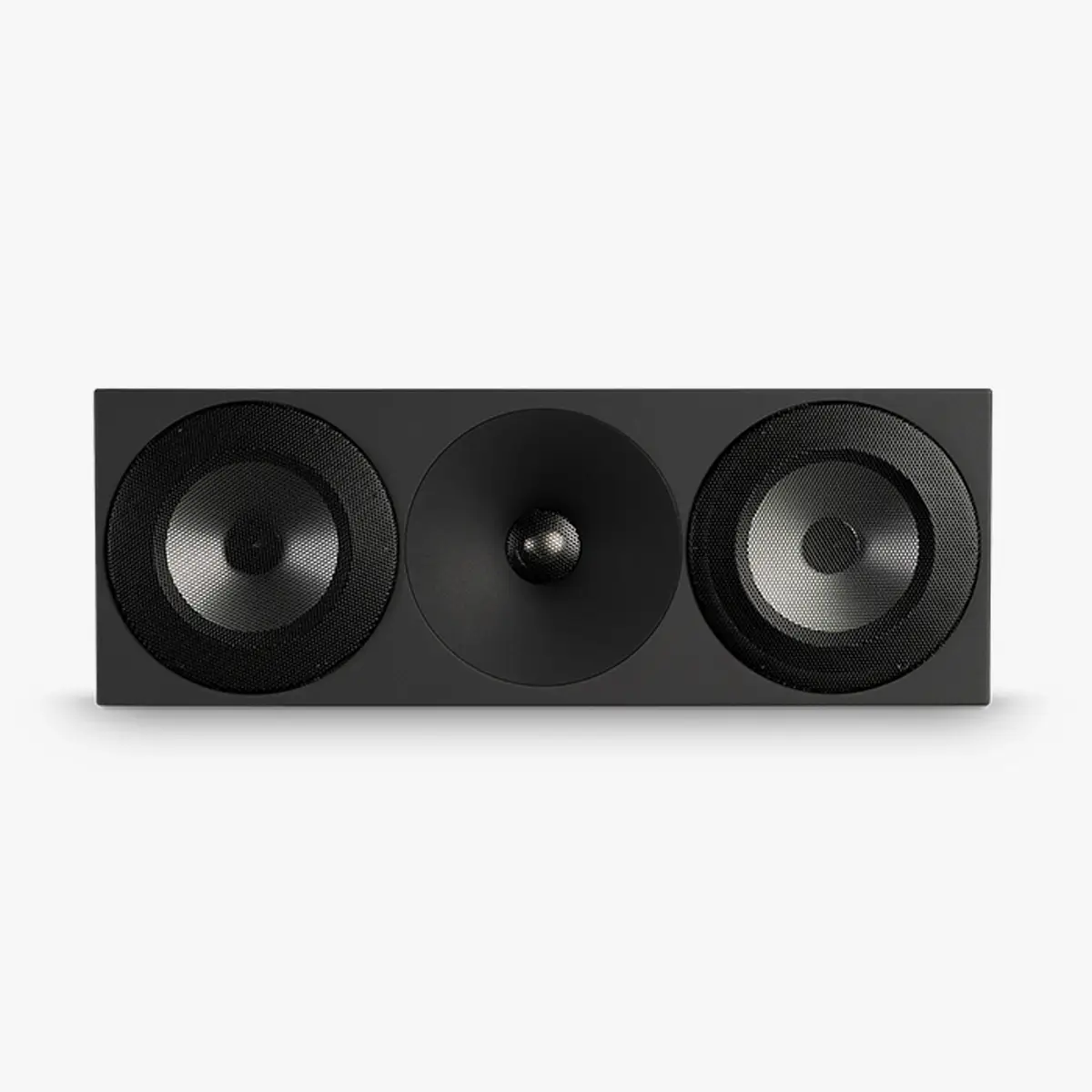

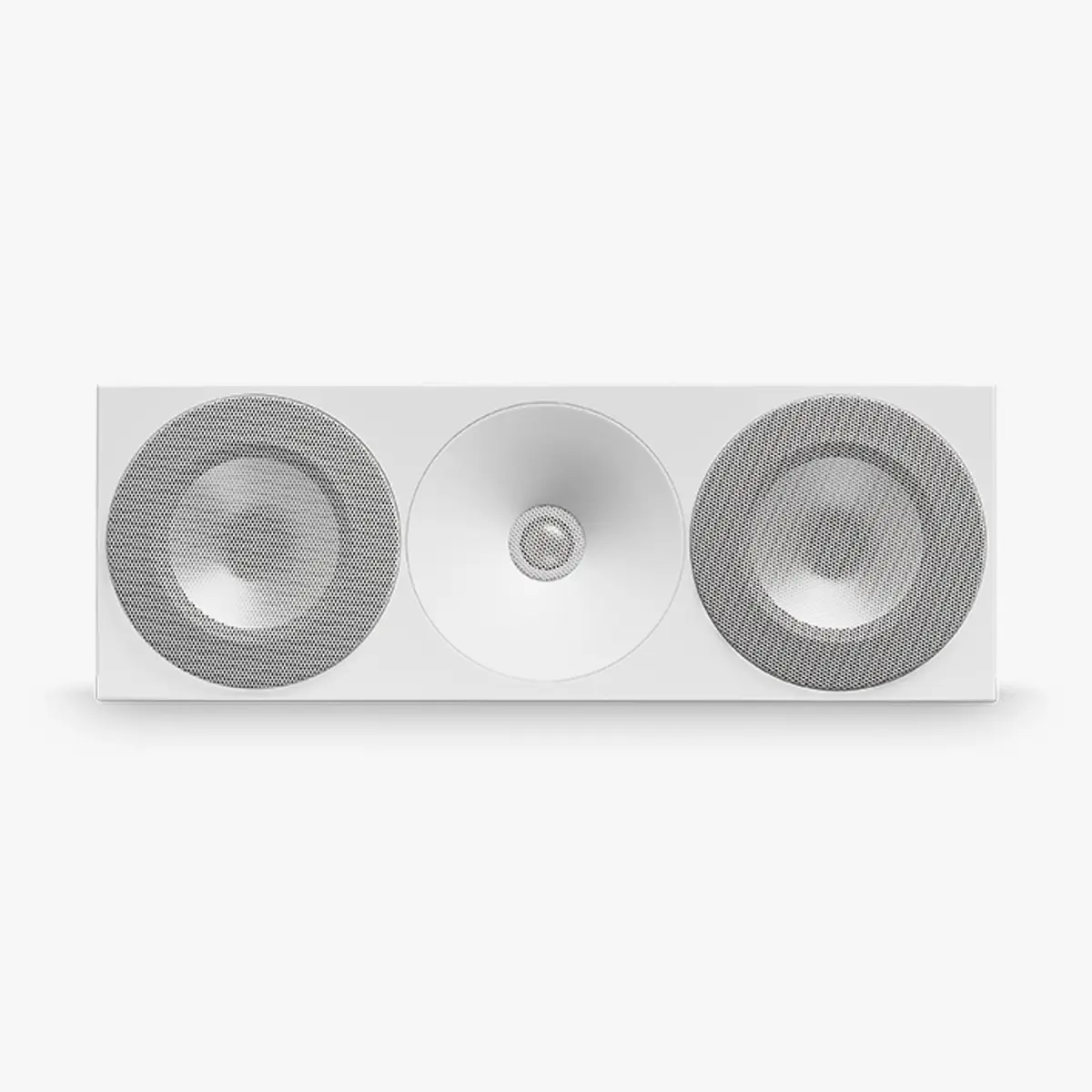

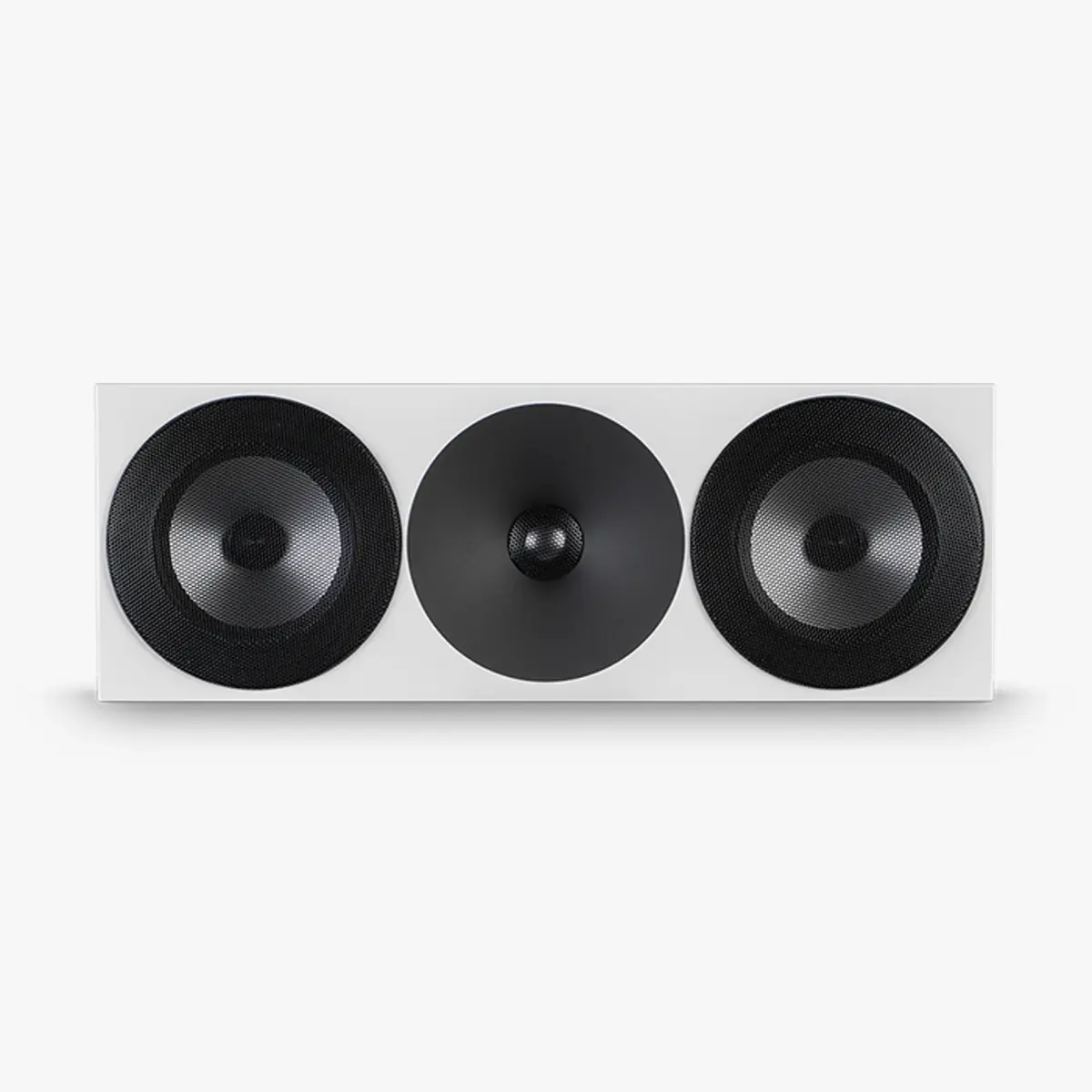

ColourBlack, Full White, Standard White, Walnut
Grille colourBlack, White, Custom RAL colour
Operating Principle2 way, Vented
Speaker Drivers1″ titanium tweeter, 2x 5.25″ aluminium woofer
Crossover1.6 kHz
Impedance4 Ω
Sensitivity90 dB
Frequency Response46 Hz – 25 kHz -6dB
Recommended Amplifier Power25 W – 150 W
Dimensions (H x W x D)160 mm x 452 mm x 265 mm / 6.3″ x 17.8″ x 10.4″
Grille protrusion8 mm / 0.3″
Connector depth addition39 mm / 1.5″
Weight9.6 kg (21.2 lbs)
Warranty5 years

Frequently Asked Questions

What makes the Argon 5C suitable as a centre channel rather than a repurposed stand-mount speaker?

Its MTM layout is designed specifically for horizontal placement, so dispersion stays even left to right when the cabinet is turned on its side above or below a screen – a genuine stand-mount speaker loses this even dispersion when rotated.

Does it have to be paired with Argon speakers, or can it work with other Amphion models?

It shares its acoustic design with the wider Argon range, so it integrates most closely with Amphion Argon-series speakers, but its neutral voicing also makes it a sensible centre-channel match for other Amphion models.

How does it differ from the Helium 520C?

The Argon 5C uses aluminium woofers rather than paper, giving a firmer low end and higher power handling to suit the Argon range, and its frequency response extends slightly lower.

How should I position it relative to my screen?

Directly above or below the screen, as close to ear height as the setup allows, keeping the front baffle roughly in line with your left and right speakers.
