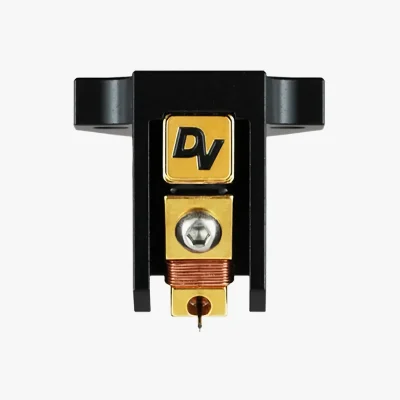

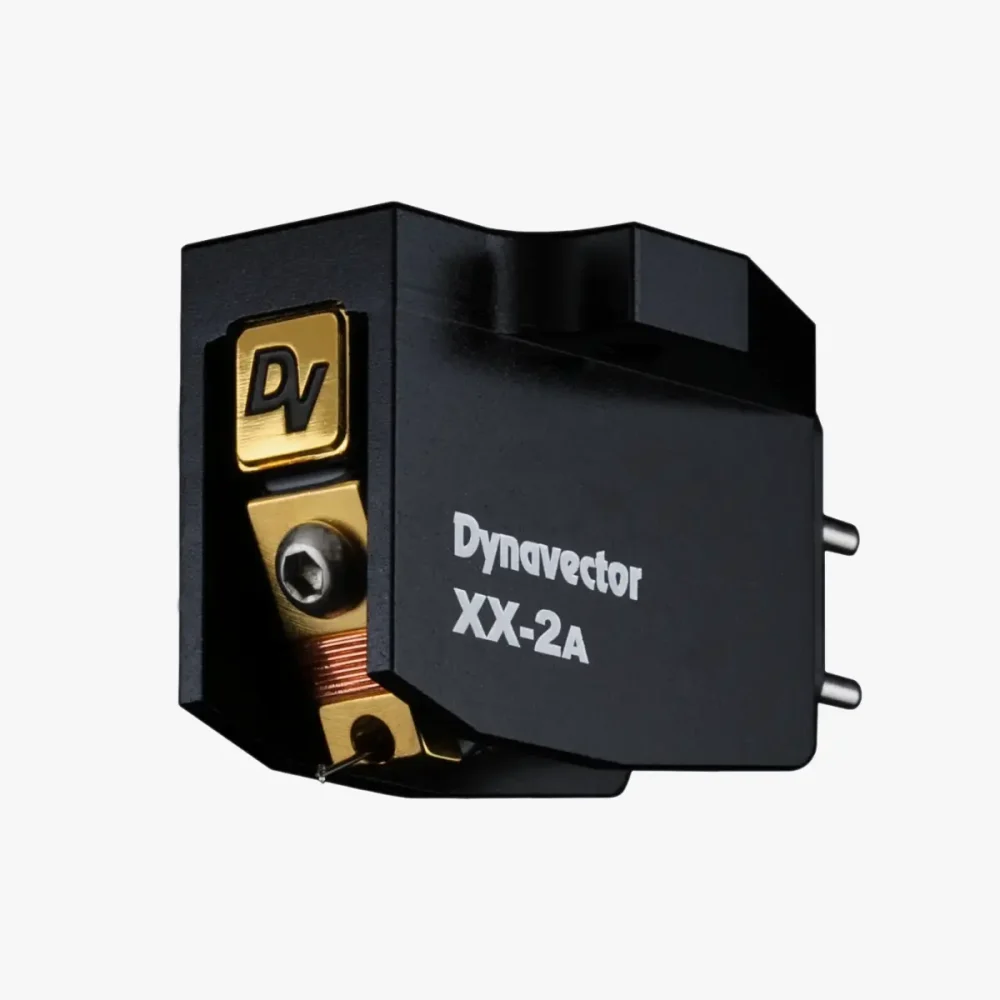

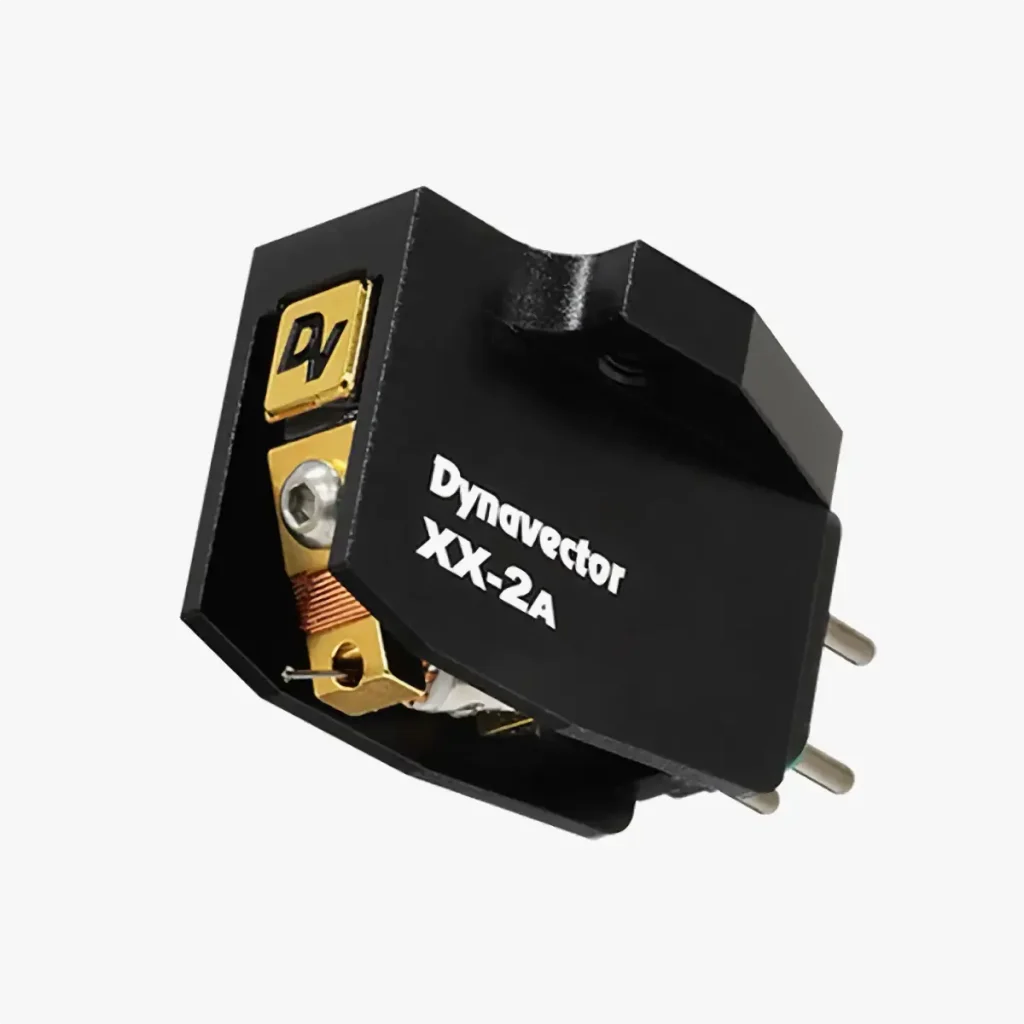

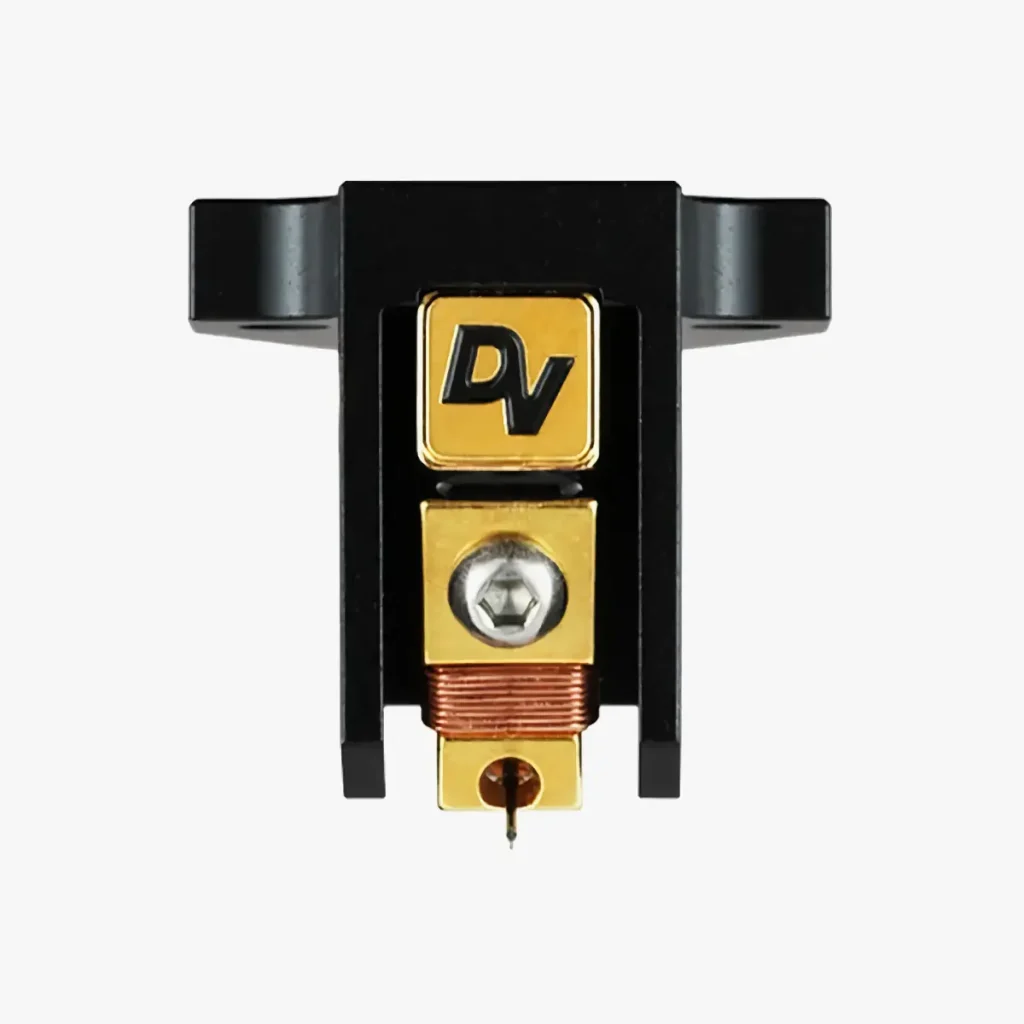

Dynavector XX-2A Moving Coil Cartridge
The Dynavector XX-2A features a boron cantilever, Pathfinder line contact stylus and special magnetic annealing for improved clarity and dynamic sound.
Made to order in 2-3 weeks. Delivery & returns
£1,799.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Dynavector XX-2A
The Dynavector XX-2A moving coil cartridge represents a significant evolution in analogue playback, delivering exceptional clarity, detail and musicality. Building on the XX-2 MkII, its immediate predecessor, the XX-2A incorporates Dynavector’s Special Annealing Magnetic Circuit, refining the physical properties of its Alnico magnet assembly to strengthen and stabilise the magnetic field, reducing distortion and improving signal purity for a more dynamic, lifelike sound.
At the heart of the XX-2A is a rigid boron cantilever paired with a Pathfinder line contact stylus, for accurate groove tracing and detail retrieval. A wide frequency response and low distortion make it suited to anyone chasing genuinely high-fidelity vinyl playback.
A rigidly mounted magnetic circuit
Stainless steel bolts hold the front and rear yokes and magnet rigidly in place, so their relative position – and the air gap between them – doesn’t shift under vibration. Tightening torque is adjusted by hand during assembly, a step that has a direct bearing on sound quality and is checked on every individual unit.
Features
Magnetic circuit
Special Annealing Magnetic Circuit
Refines the physical properties of the Alnico magnet assembly for a more dynamic, distortion-free sound.
Alnico magnets with Flux Damping
Lower magnetic resistance than rare-earth alternatives, for a high signal-to-noise ratio and fast transient response.
High-rigidity construction
Stainless steel bolts secure the yokes and magnets, hand-torqued during assembly.
Cantilever & compliance
Solid boron cantilever with Pathfinder stylus
A 6mm cantilever and PF line contact stylus form a lightweight, rigid vibration system.
Suited to light-to-medium mass tonearms
10mm/N compliance and 8.9g weight; a lightweight headshell is recommended for best results.
Specifications
| Brand | Dynavector |
|---|---|
| Type | Low output moving coil, flux damper & Alnico magnet |
| Output Voltage | 0.28mV (1kHz, 5cm/sec) |
| Channel Separation | 30dB (1kHz) |
| Channel Balance | 1.0dB (1kHz) |
| Frequency Response | 20Hz–20kHz (±1dB) |
| Compliance | 10mm/N |
| Tracking Force | 1.8–2.2g |
| Impedance | 6 ohms |
| Recommended Load Impedance | >30 ohms |
| Cantilever | 6mm length, 0.3mm diameter solid boron |
| Stylus | Pathfinder (PF) line contact, 7 x 30 micron radius |
| Weight | 8.9g |
In the box
- XX-2A cartridge
- Mounting screws (M2.5)
- Instruction manual
- Warranty card
