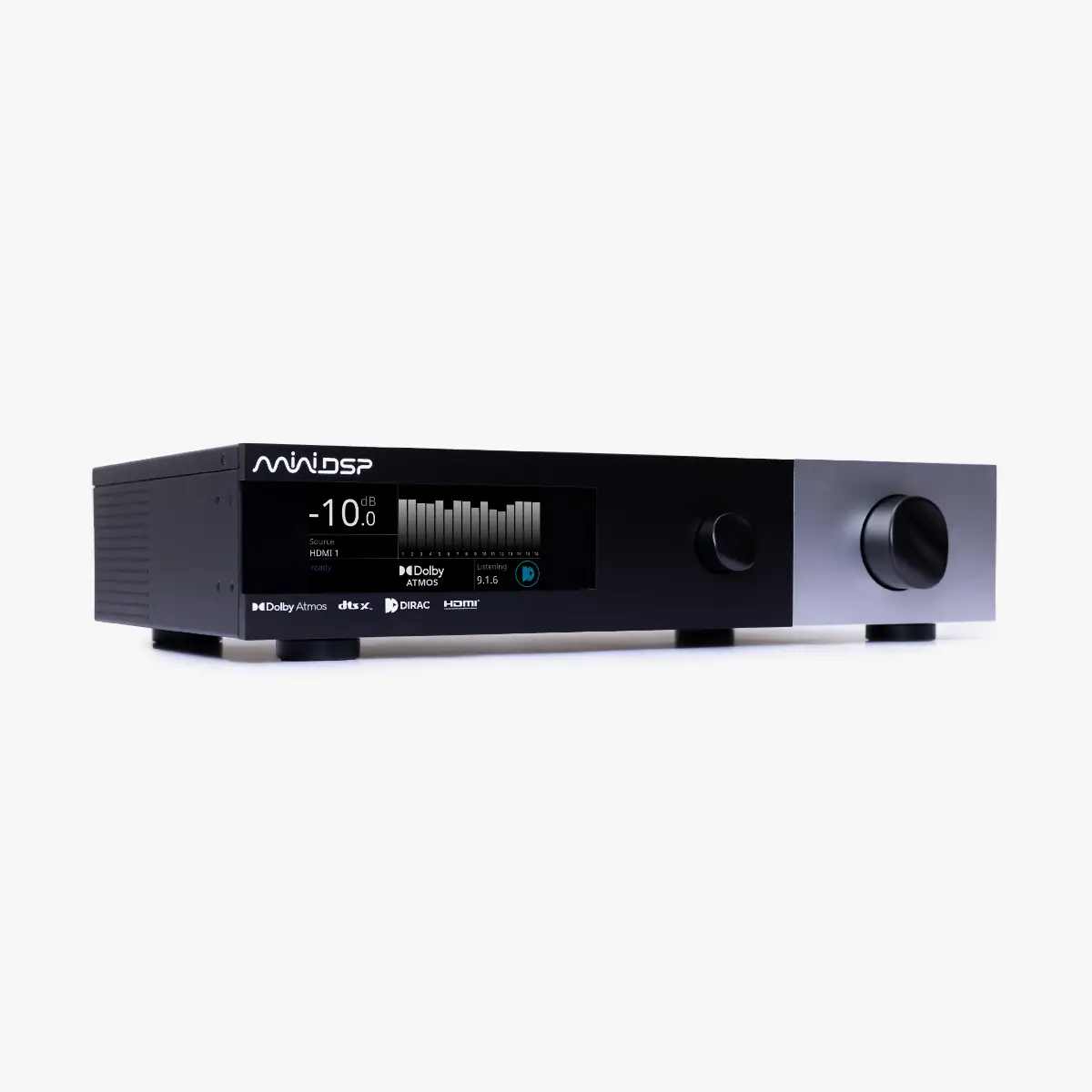

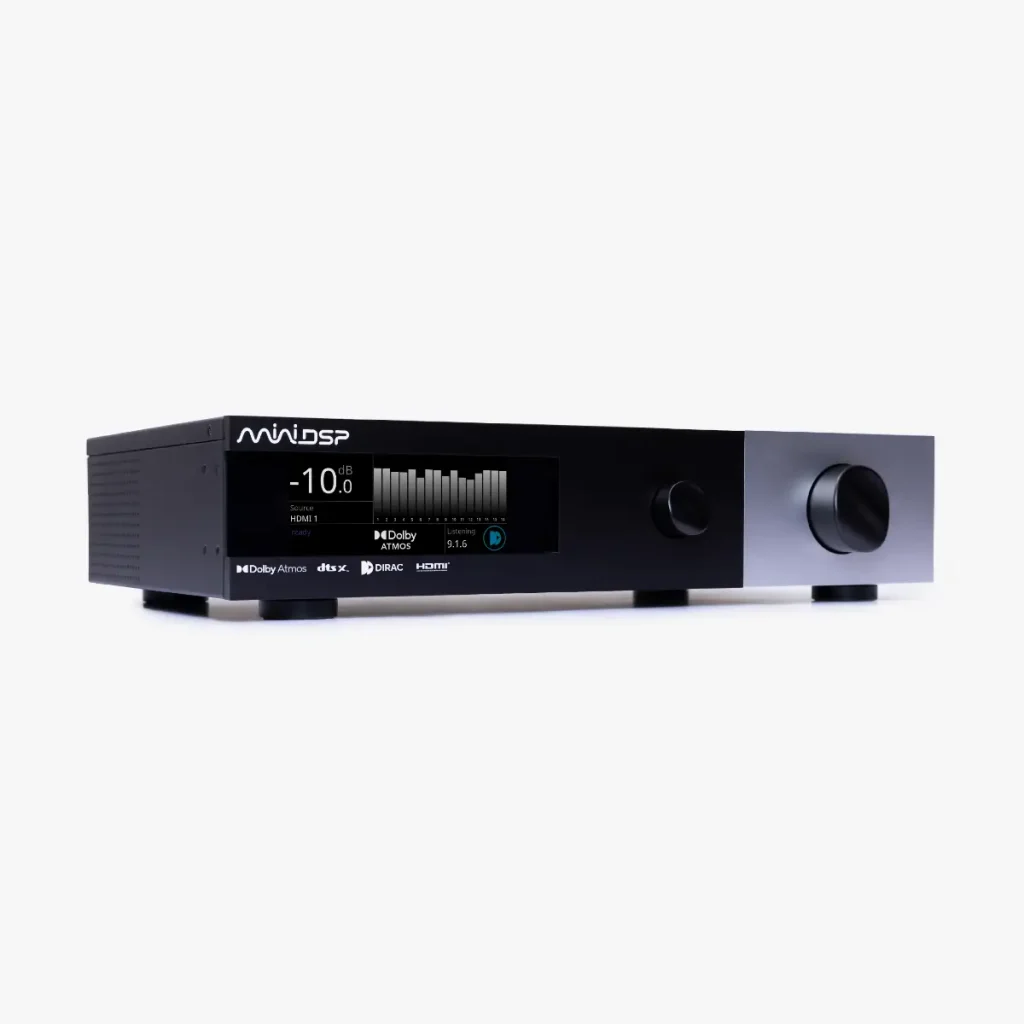

miniDSP Tide16 Audio Processor
16-channel Dolby Atmos and DTS:X processor built around a dedicated ARM audio engine, with Dirac Live room correction, Dirac Live Bass Control and Active Room Treatment included as standard.
Usually dispatched in 3-5 days. Delivery & returns
£3,749.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the miniDSP Tide16
The Tide16 is a 16-channel immersive audio processor built around a dedicated quad-core ARM engine rather than the SHARC/TI DSP chipsets found in most AV processors, giving it more headroom to run Dolby Atmos, DTS:X and full-range Dirac Live correction simultaneously without compromise. It decodes and upmixes up to 16 channels, so it scales from a straightforward 5.1 system up to a full Atmos configuration with multiple subwoofers on one box.
Room correction is what makes the Tide16 truly exceptional. Dirac Live, Dirac Live Bass Control and Active Room Treatment are all included as standard. That means multi-subwoofer bass integration and advanced full-range room correction are available from the day it arrives, without the need to purchase additional licences.

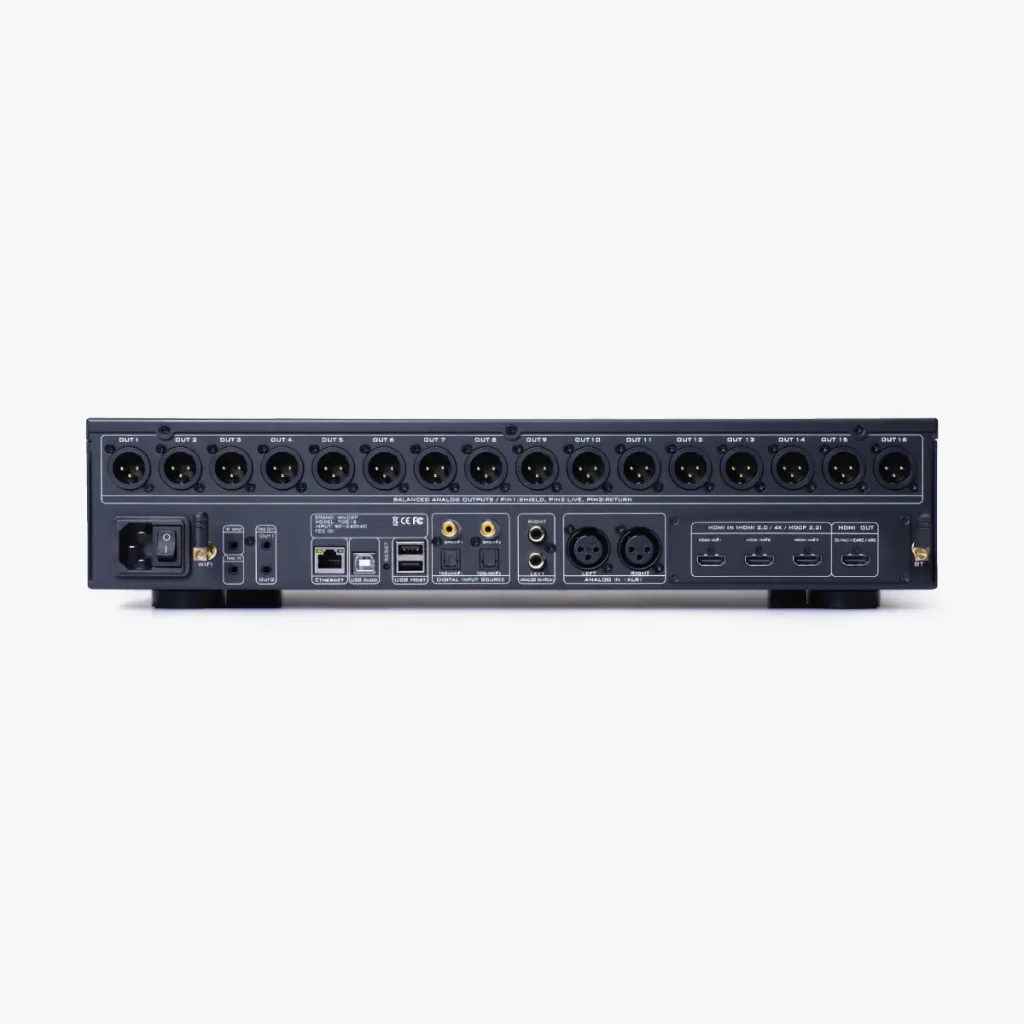

Three HDMI inputs with eARC handle sources from an eARC-capable TV, while sixteen fully balanced XLR outputs and a flexible matrix mixer make it equally capable of driving a home cinema’s worth of speakers or a multi-way active stereo pair. Stereo playback isn’t an afterthought either: USB, Bluetooth (LDAC and aptX HD), analogue XLR/RCA and four S/PDIF inputs keep two-channel listening at the same audiophile-grade specification as the surround processing.
Features
Audio Processing
Full Dolby Atmos and DTS:X decoding
Soundtracks in any current format play back the way they were mixed rather than being downmixed or reprocessed.
Complete Dirac suite
Dirac Live room correction, Dirac Live Bass Control and Active Room Treatment are all included as standard.
Multiple subwoofers
Decodes up to 16 channels (Dolby) or 12 channels (DTS:X), with up to four subwoofers.
Flexible upmixing
Upmixing is available for content that doesn’t already carry a full surround mix.
Connectivity
HDMI with eARC and 4K passthrough
Three HDMI inputs and one output handle up to 4K60Hz UHD video with eARC/ARC and VRR support.
Digital and analogue stereo inputs
Two S/PDIF and two optical digital inputs, and multichannel USB audio.
Bluetooth
Built-in Bluetooth with support for LDAC, aptX HD, aptX, AAC and SBC.
16-channel balanced output
Sixteen fully balanced XLR outputs. Enough channels to run a full Atmos speaker system with multiple subwoofers.
Control
OLED display with IR control
A 1080p colour OLED front panel shows source, level and processing status at a glance, with IR control for day-to-day use without opening a control app.
Web UI and Device Console
A web interface provides access to more advanced settings, while miniDSP’s Device Console software gives access to the full DSP toolbox.
Unlimited configuration presets
Different speaker layouts, sources or listening modes can each have their own saved DSP configuration.
Trigger and automation integration
12V trigger in/out plus an IR input let the Tide16 power up and down, or respond to commands, as part of a wider automation or multi-zone control setup.
Specifications
| Brand | miniDSP |
|---|---|
| Processing engine | Quad-Core A53 ARM processor, 1.8GHz |
| Processing resolution | 32-bit floating point, 48kHz sample rate |
| Surround decoding | Dolby Atmos, Atmos Height Virtualization, Atmos Music, Dolby TrueHD, DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Channel decoding | Up to 16ch (Dolby), up to 12ch (DTS:X); flexible subwoofer config up to 4 |
| Upmixing | Atmos Upmixer (up to 16ch), Neural-X upmixer (up to 12ch) |
| HDMI | 3x in, 1x out, HDMI 1.4/2.0b, 4K60Hz UHD, eARC/ARC, VRR, HDCP 2.3, Dolby Vision compatible |
| Digital audio inputs | 2x S/PDIF (RCA), 2x optical, Bluetooth (LDAC/aptX HD/aptX/AAC/SBC), USB audio (up to 8ch) |
| Connectivity | Wi-Fi 802.11a/b/g/n/ac, Gigabit Ethernet, USB host x2, USB device x1 |
| Analogue inputs | Stereo RCA and balanced XLR, ES9842QPRO converter, 122dB SNR |
| Analogue outputs | 16-channel fully balanced XLR, 8x ESS ES9017 DAC, 125dB SNR |
| Filtering | Dirac Live 3.x full-range correction, Dirac Live Bass Control, Dirac Active Room Treatment, advanced bass management, matrix/crossover/EQ/delay toolbox |
| Presets | Unlimited |
| Control | Web UI, miniDSP Device Console (Mac/Win), REST control API |
| Dimensions (W x D x H) | 433mm x 255mm x 90mm |
| Power | 90-240VAC, 50/60Hz, 23W idle / 1.3W standby, passive cooling |
| Triggers | 1x 12V trigger in, 2x 12V trigger out, 1x IR input |
| In the box | Tide16 unit, IR remote, IR flasher, UK/EU/US/AU IEC plug, USB and Ethernet cables, removable rack ears, Wi-Fi/BT antenna |
| Warranty | 12 months |
