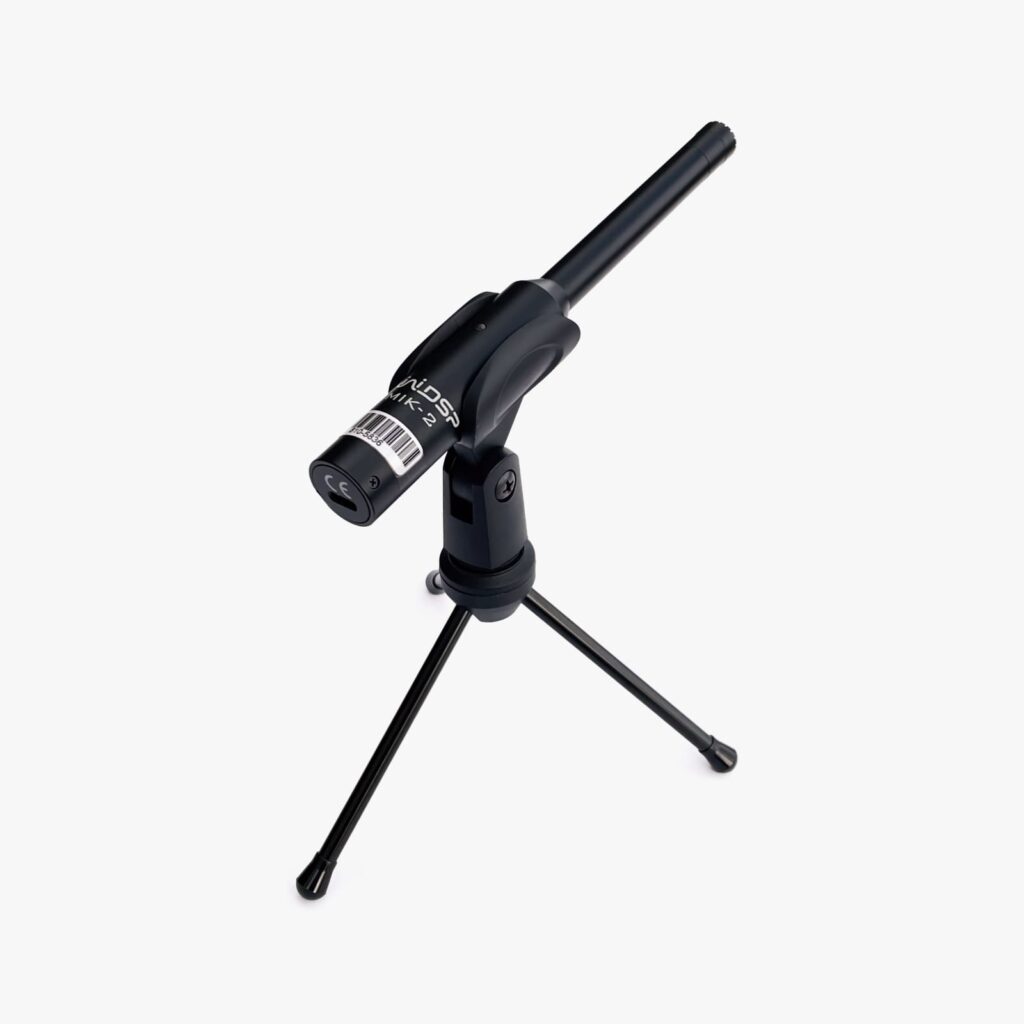

miniDSP UMIK-2 USB Measurement Microphone
miniDSP UMIK-2 is a reference class calibrated omnidirectional USB microphone suitable for speaker and subwoofer measurement, or digital room correction using Room EQ Wizard, Dirac Live and other popular software.
Usually dispatched the same day. Delivery & returns
£249.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the miniDSP UMIK-2
The miniDSP UMIK-2 is a reference-class acoustic measurement microphone. It works perfectly with Room EQ Wizard (REW), Dirac Live and other popular measurement software. It comes with individual calibration files for horizontal and vertical placement, providing highly accurate measurements in either orientation.
miniDSP’s original UMIK-1 microphone is the current standard for acoustic measurement. The miniDSP UMIK-2 takes all of the best features from the UMIK-1, but takes its performance and capabilities to new levels. UMIK-2 is equipped with a larger, more sensitive microphone capsule and a high end ADC, which provides variable sample rates of up to 192 kHz. This enables it to reliably measure frequencies up to 96 kHz – two full octaves more than UMIK-1.
UMIK-2 is designed to be connected directly to a computer via USB, without the need for an external mic preamp or analogue-to-digital converter (ADC). As a USB Audio Class 2 device, operation is plug-and-play on macOS, iOS and Linux. Driver software is included for WIndows.
Features
- USB audio reference measurement microphone
- Unique calibration files for each microphone
- 1/2″ capsule on 60 UNS thread
- 32 bit 44.1 kHz – 192 kHz recording
- Custom Windows ASIO drivers and plug and play on macOS and Linux
- Low noise floor preamps and ADC (120 dB dynamic range)
- Compatible with a wide range of measurement software, including REW and Dirac Live

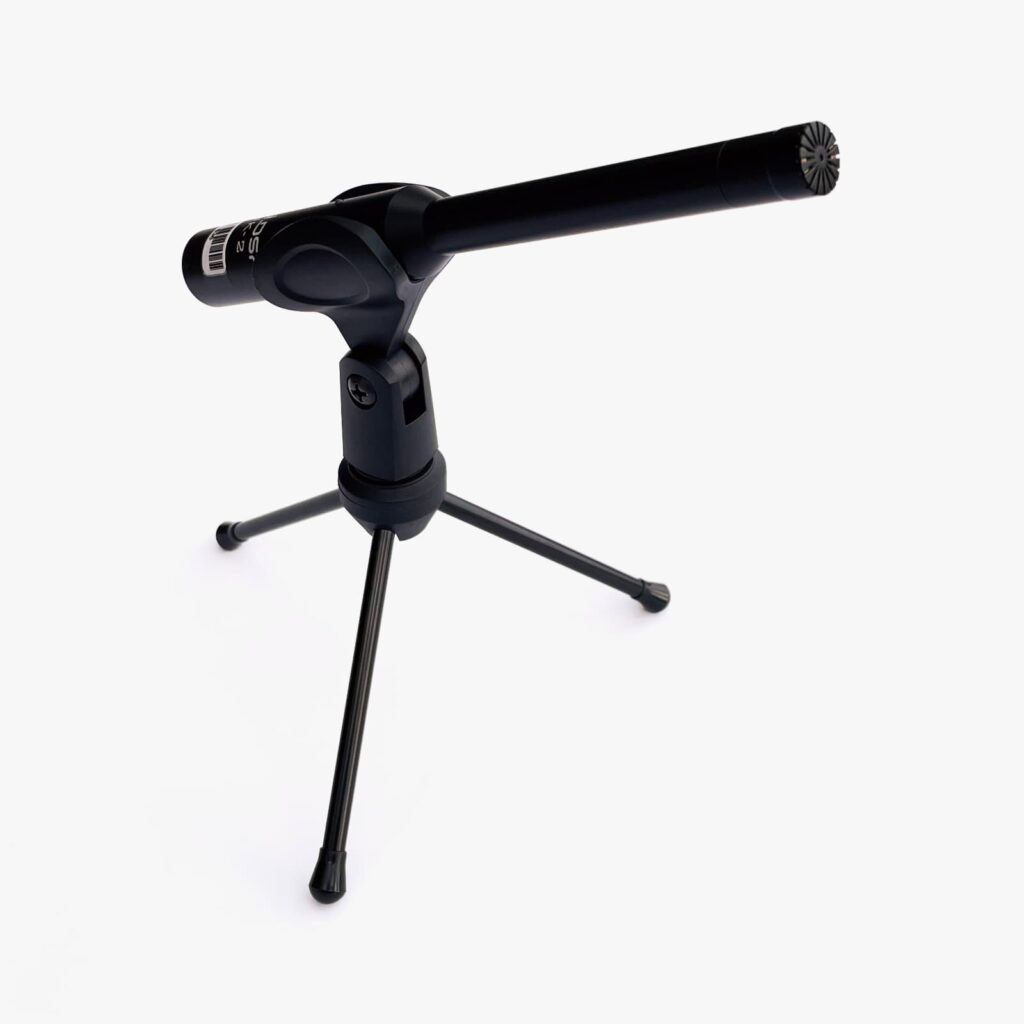

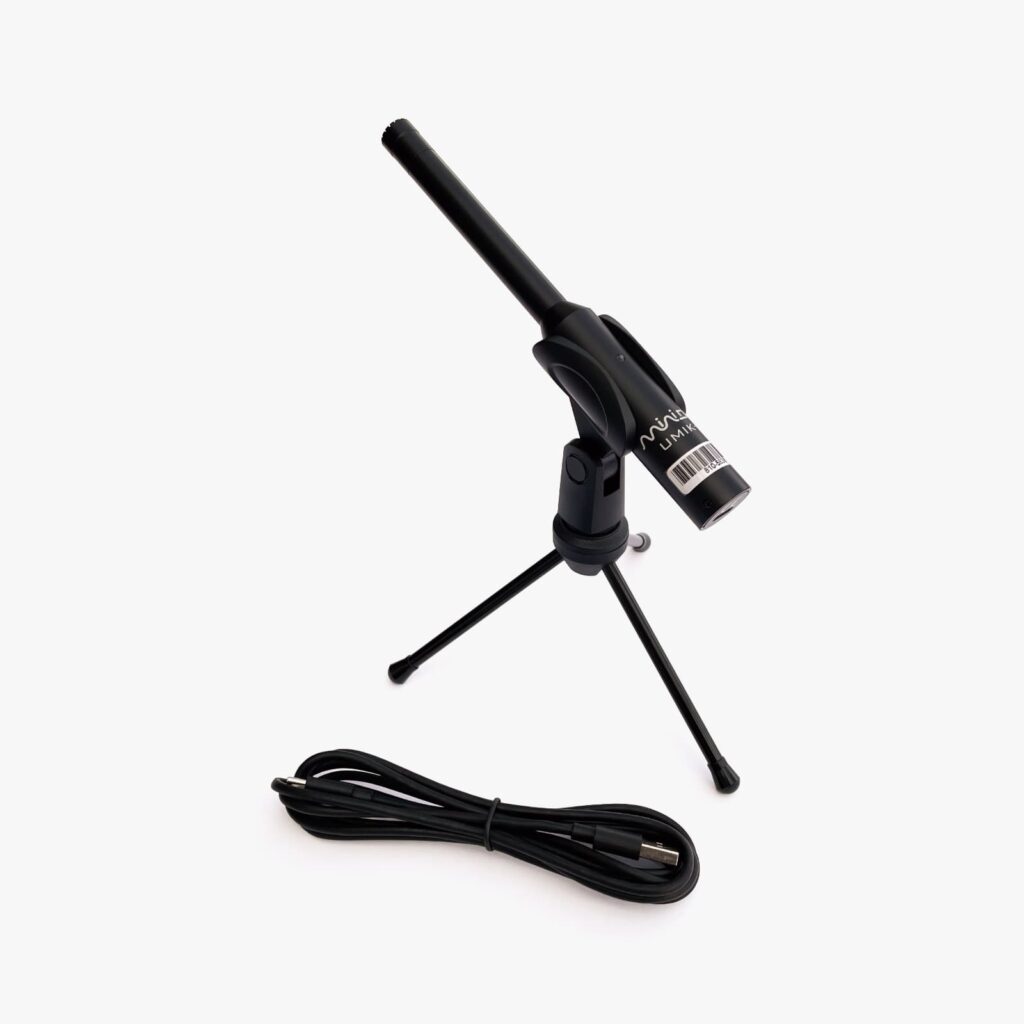

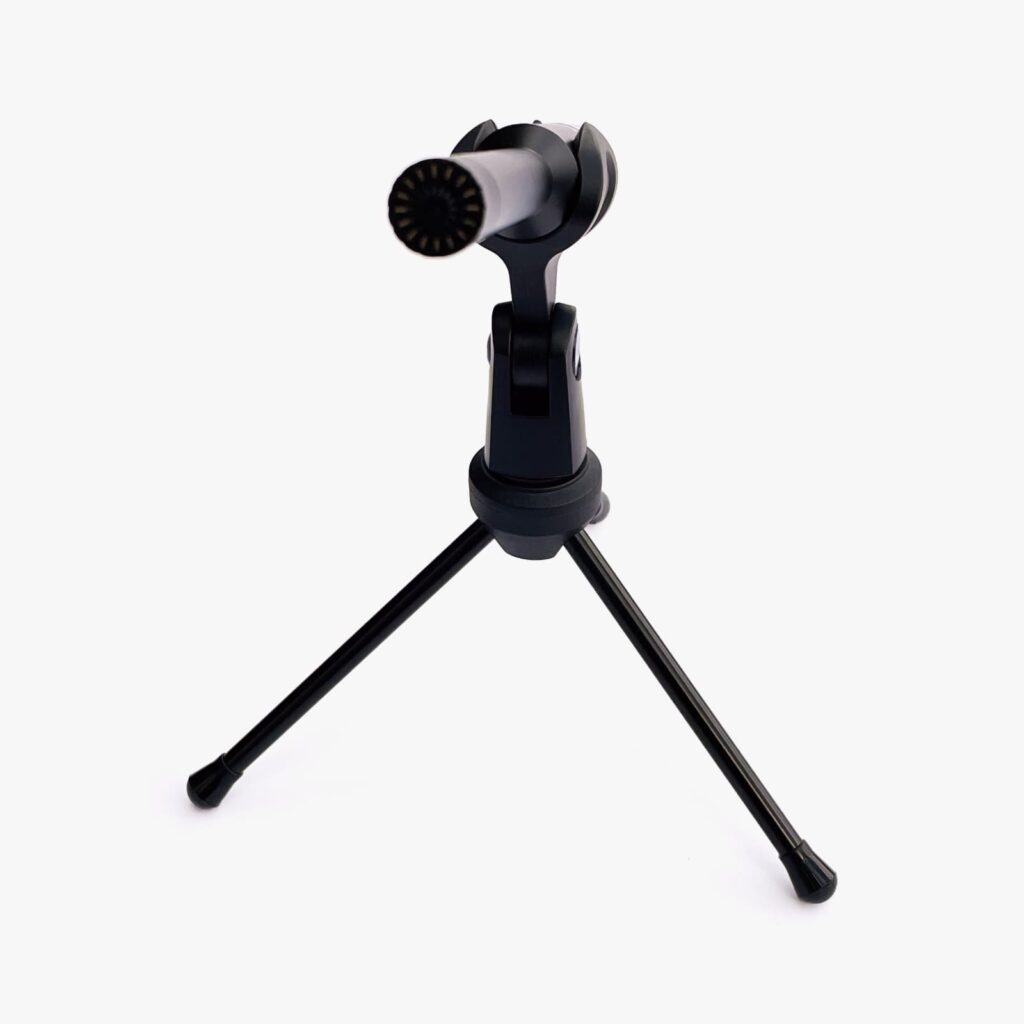

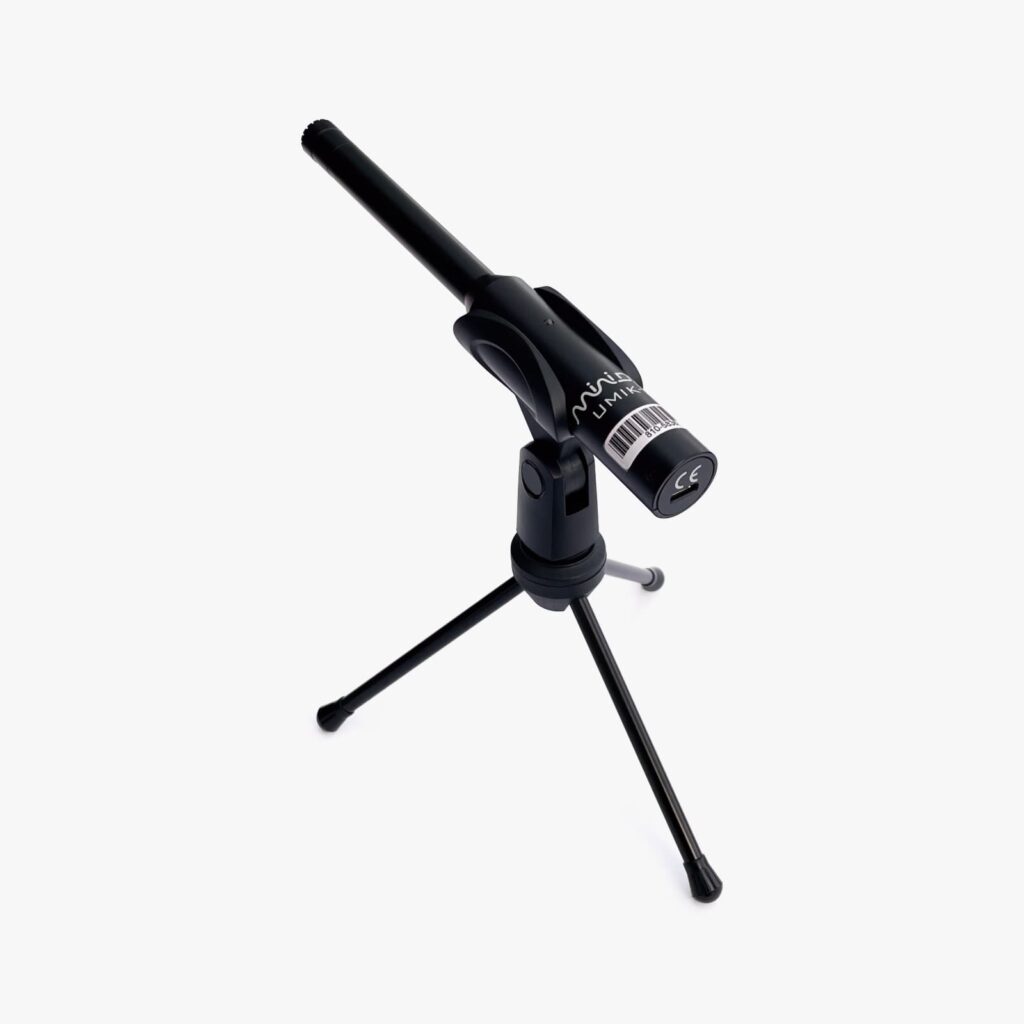

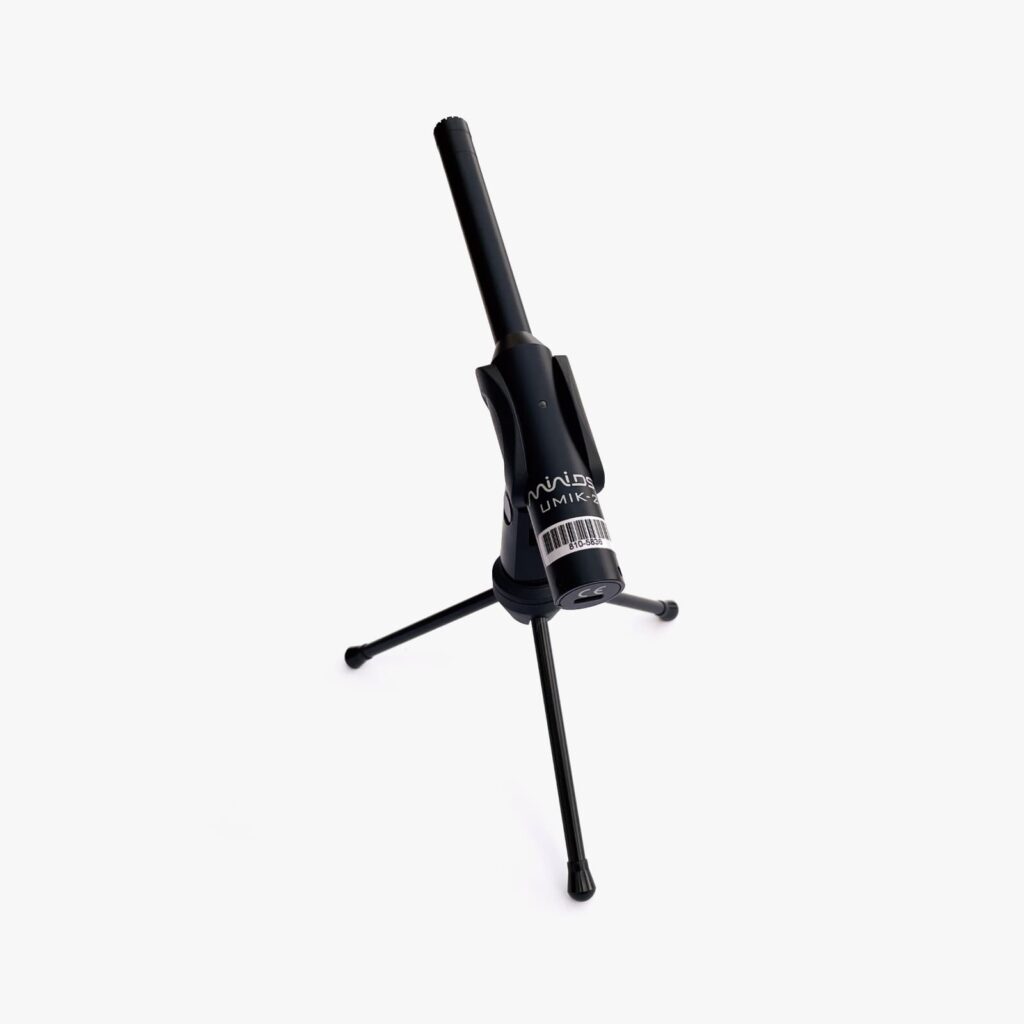

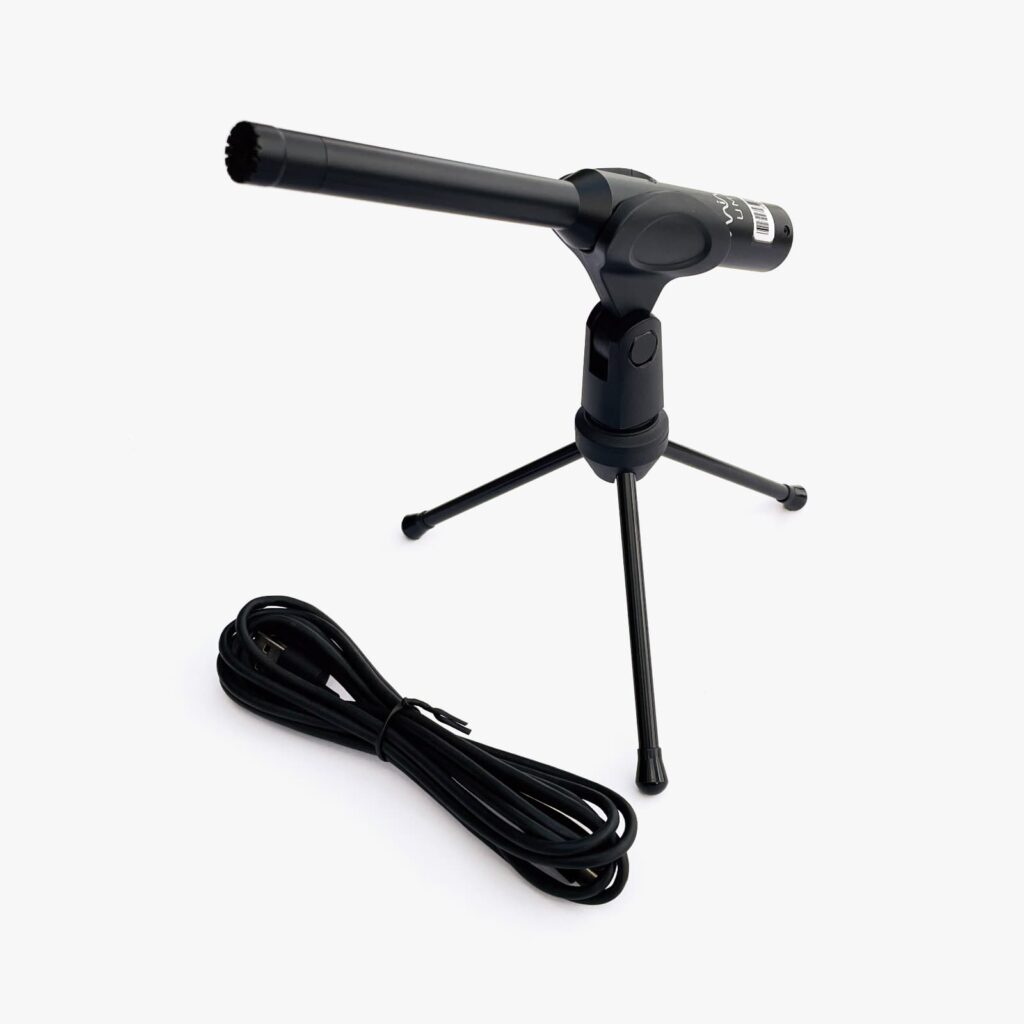

- Supplied with USB cable (type A to type C), mini tripod, microphone clamp and wind screen
Specifications
| Brand | miniDSP |
|---|---|
| Capsule Type | 1/2″ capsule on 60 UNS thread |
| Calibration File | Calibration files provided for vertical and horizontal orientation, Calibration files referenced to the serial number include on axis frequency amplitude / sensitivity drift |
| Colour | Grey |
| Digital Outputs | USB |
| Directivity | Omnidirectional |
| Sample Rates | 32 bit / 192 kHz |
| Maximum SPL | 125 dB |
| Power Supply | USB powered (5 V) |
| USB Audio Class | USB audio class 2.0 |
| Accessories | 3/8″ threaded microphone clamp, Foam wind screen, Mini tripod, USB cable |
| Dimensions (W x D x H) | 21 x 21 x 185 mm |
| Weight | 150 g |
Downloads
Frequently asked questions
Do I actually need the UMIK-2 for room correction?
For subwoofer integration and room correction work, the audible band (20 Hz–20 kHz) is what matters, and UMIK-1 already covers that accurately. UMIK-2 is aimed at users who want reference-class measurement accuracy, additional headroom, or who need to measure beyond the audible range.
Does UMIK-2 need special drivers?
UMIK-2 is a USB Audio Class 2 device. On macOS and Linux it’s plug-and-play. On Windows you will need to install the driver provided by miniDSP.
Is UMIK-2 compatible with REW and Dirac Live?
Yes, both Room EQ Wizard and Dirac Live fully support UMIK-2 and the included calibration files.
