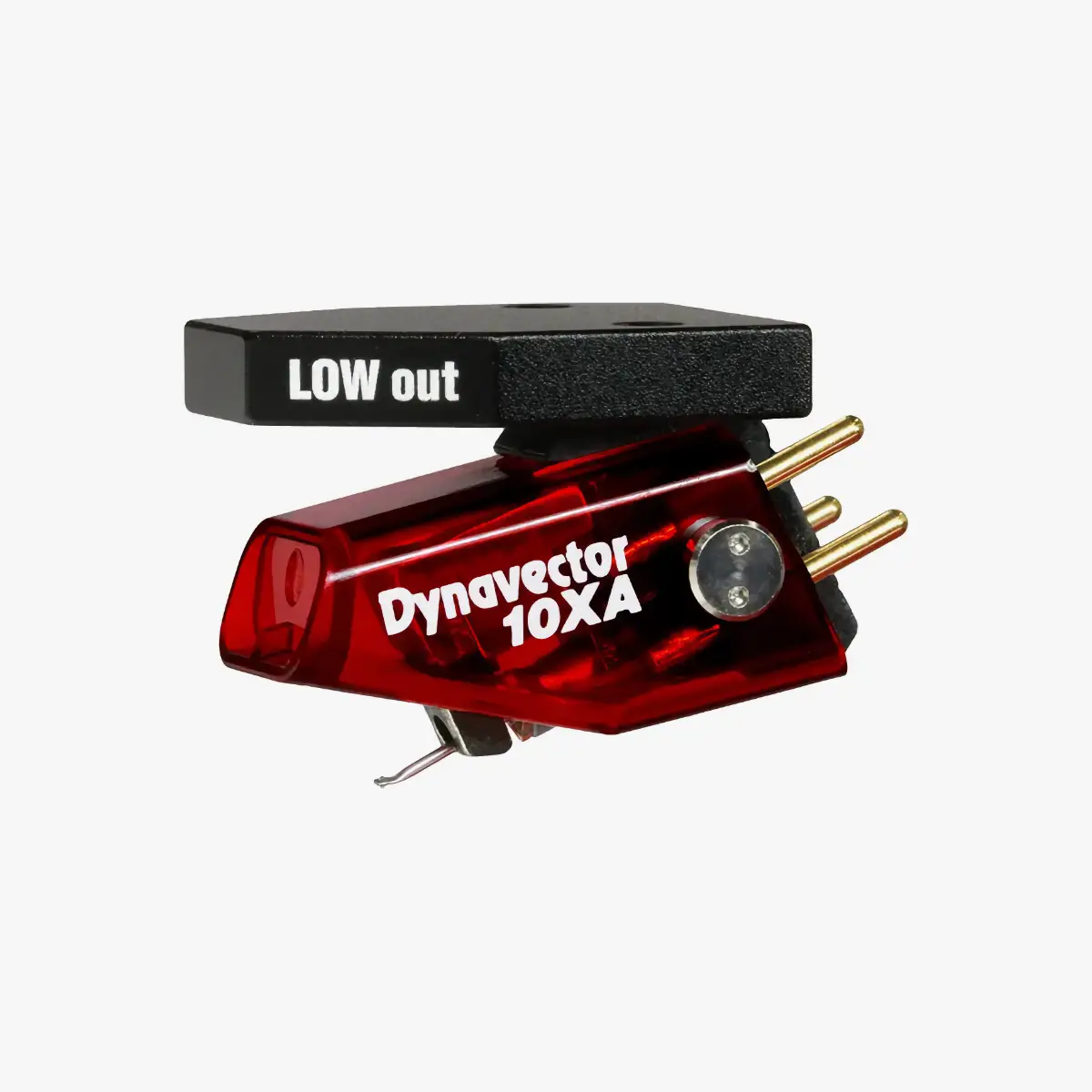

Dynavector 10XA-L Moving Coil Cartridge
Dynavector’s low output moving coil cartridge – built for a dedicated MC phono stage or step-up transformer, for the fuller, more distinct MC presentation. Features the new Special Magnetic Annealing process and a Shibata Type III stylus for extended, articulate high-frequency performance.
Usually dispatched in 1-2 days. Delivery & returns
£649.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Dynavector 10XA-L
For nearly half a century, Dynavector’s 10X series has been a byword for high-output moving coil cartridges – the original 10X astonished the audio world in 1978 by achieving genuinely high output from an MC design, going on to win the Design & Engineering Award at the Chicago CES that year and again in 1981. The 10XA carries that lineage into 2025 with the introduction of Dynavector’s Special Magnetic Annealing process, extending performance beyond what’s normally expected of an entry-level model. The 10XA-L is the low output version, built for a dedicated MC phono stage or step-up transformer. For the high output version, which runs straight into a standard MM phono input with no extra equipment needed, see the 10XA-H.
Special Annealing Magnetic Circuit
The magnetic circuit at the core of any MC cartridge uses pure iron for its stable magnetic properties, but the process of shaping and machining that iron distorts its crystal structure at an atomic level, reducing magnetic permeability. Dynavector’s Special Annealing process – refining the temperature, environment, duration and heating/cooling rates used to heat-treat each part – restores that distorted structure, for an expansive, resonant sound without the loss of resolution a generic annealing process would leave behind.
Neodymium magnet with Softened Magnetism
A powerful neodymium magnet gives the 10XA its output, with Dynavector’s patented Softened Magnetism technology reducing the distortion and harsh, edgy sound that rare-earth magnets can otherwise introduce – for a clean, well-separated sound without sacrificing drive.
Shibata Type III stylus
A Shibata Type III stylus, chosen for its superior high-frequency response, rides on a lightweight, rigid aluminium cantilever, improving groove tracking and enabling higher-resolution playback.
Low output, for the true MC character
The 10XA-L drops output to 0.5mV, for excellent compatibility with a wide range of step-up transformers and head amplifiers, letting you fully experience the distinct qualities of MC playback.
- Output: 0.5mV
- Recommended load impedance: 100Ω or higher
Best for: owners of a dedicated MC phono stage or step-up transformer who want the fuller, more distinct MC presentation.
Features
Cartridge design
Special Annealing Magnetic Circuit
Restores magnetic permeability lost during machining, for an expansive, distortion-free sound.
Neodymium magnet with Softened Magnetism
Reduces the harshness of a rare-earth magnet while keeping its output and drive.
Shibata Type III stylus with aluminium cantilever
A lightweight, rigid cantilever paired with a high-frequency-optimised stylus profile.
Output & connection
Low output coil winding
0.5mV output, for excellent compatibility with a wide range of step-up transformers and head amps.
Built for MC phono stages
Compatible with load impedances from 100Ω upward.
Specifications
| Brand | Dynavector |
|---|---|
| Type | Low output MC, flux damper & softened magnetism |
| Output Voltage | 0.5mV (1kHz, 5cm/sec) |
| Channel Separation | 25dB (1kHz) |
| Channel Balance | 1.0dB (1kHz) |
| Frequency Response | 20Hz–20kHz (±2dB) |
| Compliance | 12mm/N |
| Tracking Force | 1.8–2.2g |
| Impedance | 32 ohms |
| Recommended Load Impedance | >100 ohms |
| Cantilever | 6mm length hardened aluminium pipe |
| Stylus | Nude diamond Shibata III line contact |
| Weight | 7.5g |
In the box
- 10XA-L cartridge
- Mounting screws (M2.5)
- Instruction manual
- Warranty card
