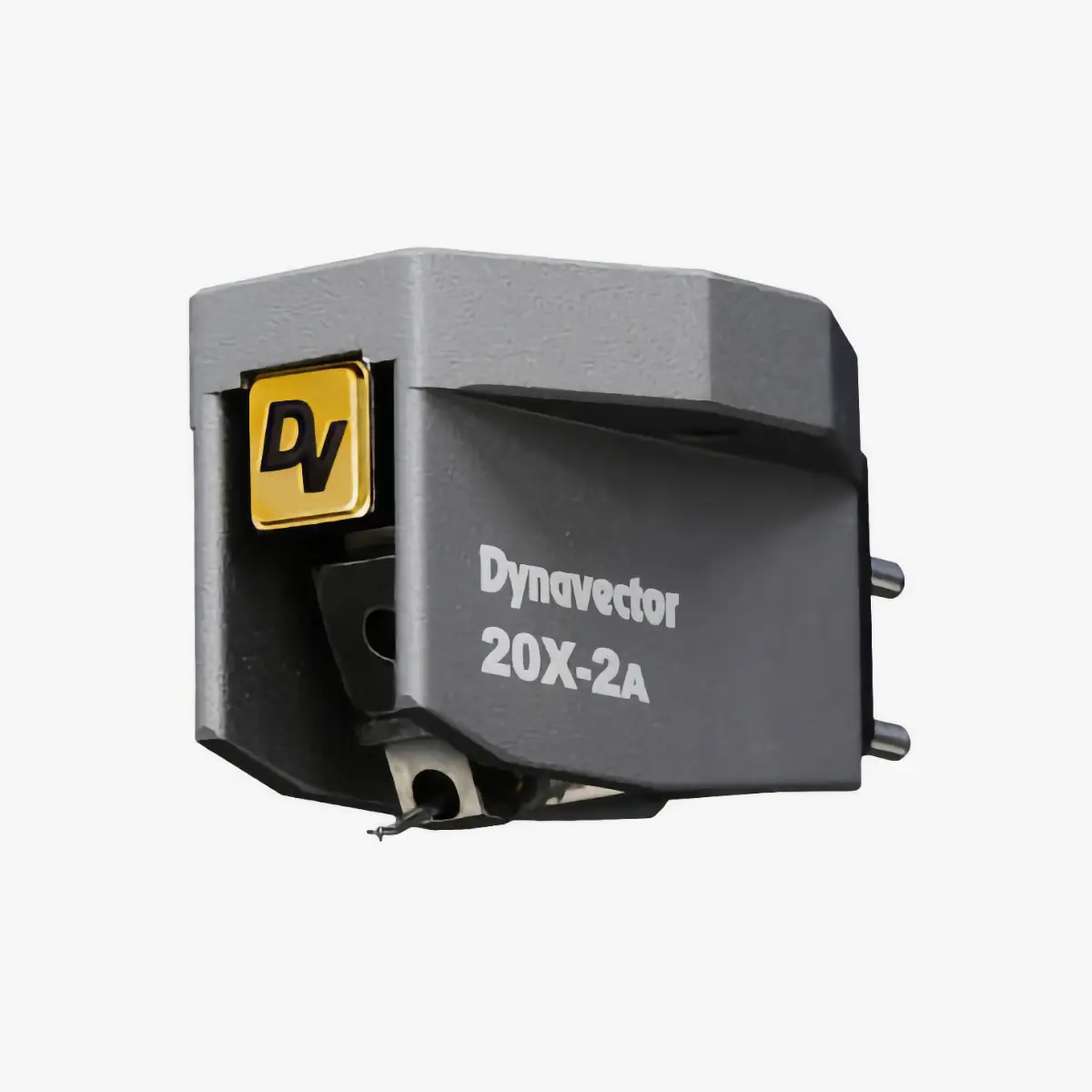

Dynavector 20X2A-H Moving Coil Cartridge
Dynavector’s high output moving coil cartridge – runs straight into a standard MM phono input, no step-up transformer or head amp required. Shares the same base structure as Dynavector’s higher-end XX-2A and Te Kaitora Rua cartridges, at a genuinely accessible price.
Usually dispatched in 1-2 days. Delivery & returns
£899.00
including delivery and VAT
Have a question? Call us on 0161 399 0993 or contact us. We also offer part exchange and price matching.
About the Dynavector 20X2A-H
The 20X2A is one of Dynavector’s more accessible moving coil cartridges, with a solid aluminium alloy body, hard aluminium cantilever and Micro-Ridge stylus tip. Its magnetic circuit shares the same base structure as Dynavector’s XX family and the Te Kaitora Rua, brought down to a genuinely accessible price rather than built to a different standard. The 20X2A-H is the high output version, running straight into a standard MM phono input. For the low output version, built for owners of a dedicated MC phono stage or step-up transformer, see the 20X2A-L.
Special Annealing Magnetic Circuit
The magnetic circuit at the core of any MC cartridge uses pure iron for its stable magnetic properties, but the process of shaping and machining that iron distorts its crystal structure at an atomic level, reducing magnetic permeability. Dynavector’s Special Annealing process – refining the temperature, environment, duration and heating/cooling rates used to heat-treat each part – restores that distorted structure, for an expansive, resonant sound without the loss of resolution a generic annealing process would leave behind.
Neodymium magnet with Softened Magnetism
A powerful neodymium magnet gives the 20X2A its output, with Dynavector’s patented Softened Magnetism technology reducing the distortion and harsh, edgy sound that rare-earth magnets can otherwise introduce – for a clear separation of sound without sacrificing drive.
Hard aluminium pipe cantilever with Micro-Ridge stylus
A hollow, hard aluminium pipe cantilever keeps the moving mass of the vibration system low, for a wide bandwidth and clear high-frequency reproduction. The Micro-Ridge stylus tip that rides on the end of it has a minute 2-micron radius of curvature where it actually contacts the groove, with a band-like shape chosen for its resistance to abrasion and consistent performance over a long stylus life.
High output, built for simplicity
Dynavector’s own coil-winding technology makes a genuinely high-output MC cartridge possible: many turns of ultra-fine wire around the coil bobbin retain a healthy 2.8mV output, eliminating the need for a head amplifier or step-up transformer. That means you get the sonic character of a moving coil cartridge with the plug-and-play simplicity of a moving magnet.
- Output: 2.8mV
- Recommended load impedance: 1,000Ω or higher
- Connects to: any standard MM phono input (47kΩ load) – no transformer or head amp required
Best for: turntable owners with a standard MM-only phono stage who want to hear what MC sounds like without buying additional equipment.
Features
Cartridge design
Special Annealing Magnetic Circuit
Restores magnetic permeability lost during machining, for an expansive, distortion-free sound.
Neodymium magnet with Softened Magnetism
Reduces the harshness of a rare-earth magnet while keeping its output and drive.
Hard aluminium pipe cantilever with Micro-Ridge stylus
A hollow, low-mass cantilever paired with a 2-micron radius stylus tip for a wide, clear high-frequency response.
Output & connection
High output coil winding
Ultra-fine wire, wound many times, retains a healthy 2.8mV output.
Direct MM phono compatibility
Runs straight into a standard 47kΩ MM input, no step-up transformer or head amp.
Specifications
| Brand | Dynavector |
|---|---|
| Type | High output MC, flux damper & softened magnetism |
| Output Voltage | 2.8mV (1kHz, 5cm/sec) |
| Channel Separation | 25dB (1kHz) |
| Channel Balance | 1.0dB (1kHz) |
| Frequency Response | 20Hz–20kHz (±2dB) |
| Compliance | 12mm/N |
| Tracking Force | 1.8–2.2g |
| Impedance | 150 ohms |
| Recommended Load Impedance | >1,000 ohms |
| Cantilever | 6mm length hard aluminium pipe |
| Stylus | Micro-Ridge, nude diamond |
| Weight | 9.2g |
In the box
- 20X2A-H cartridge
- Mounting screws (M2.5)
- Instruction manual
- Warranty card
