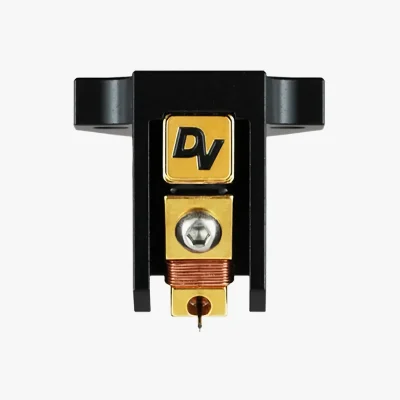

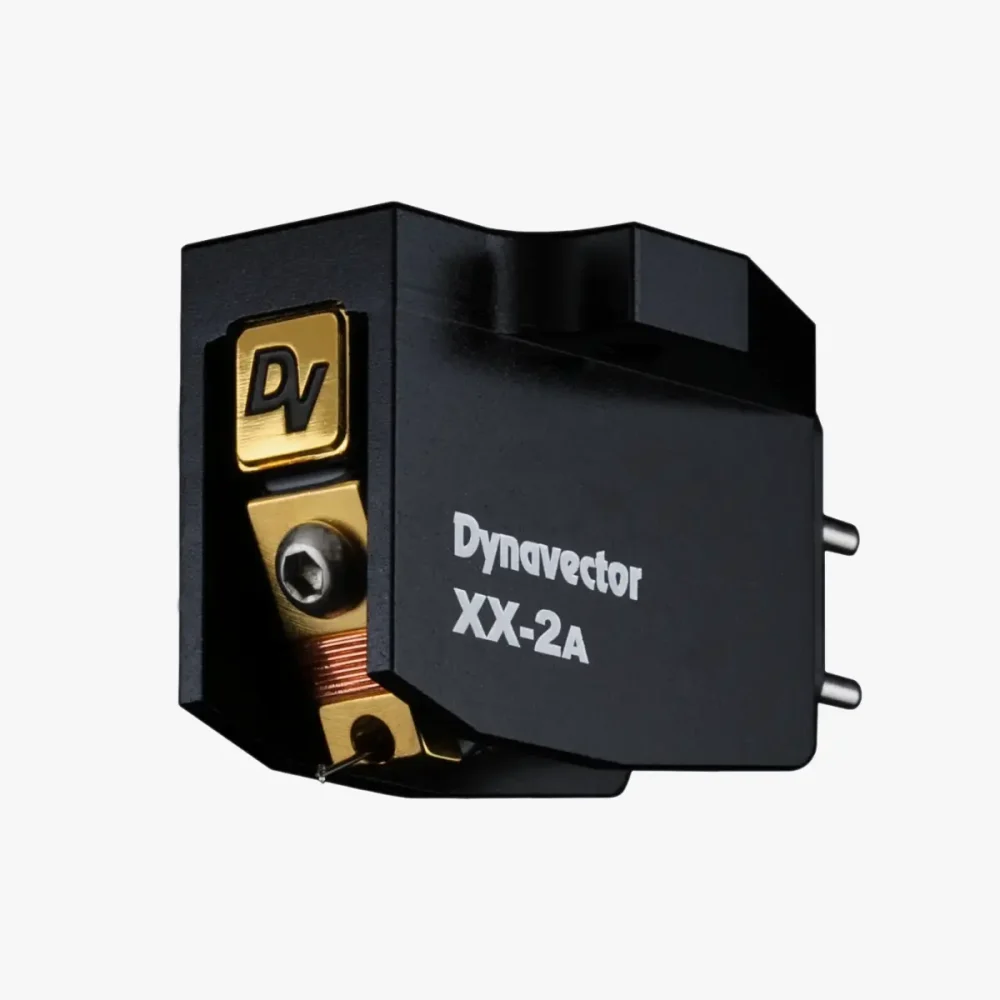

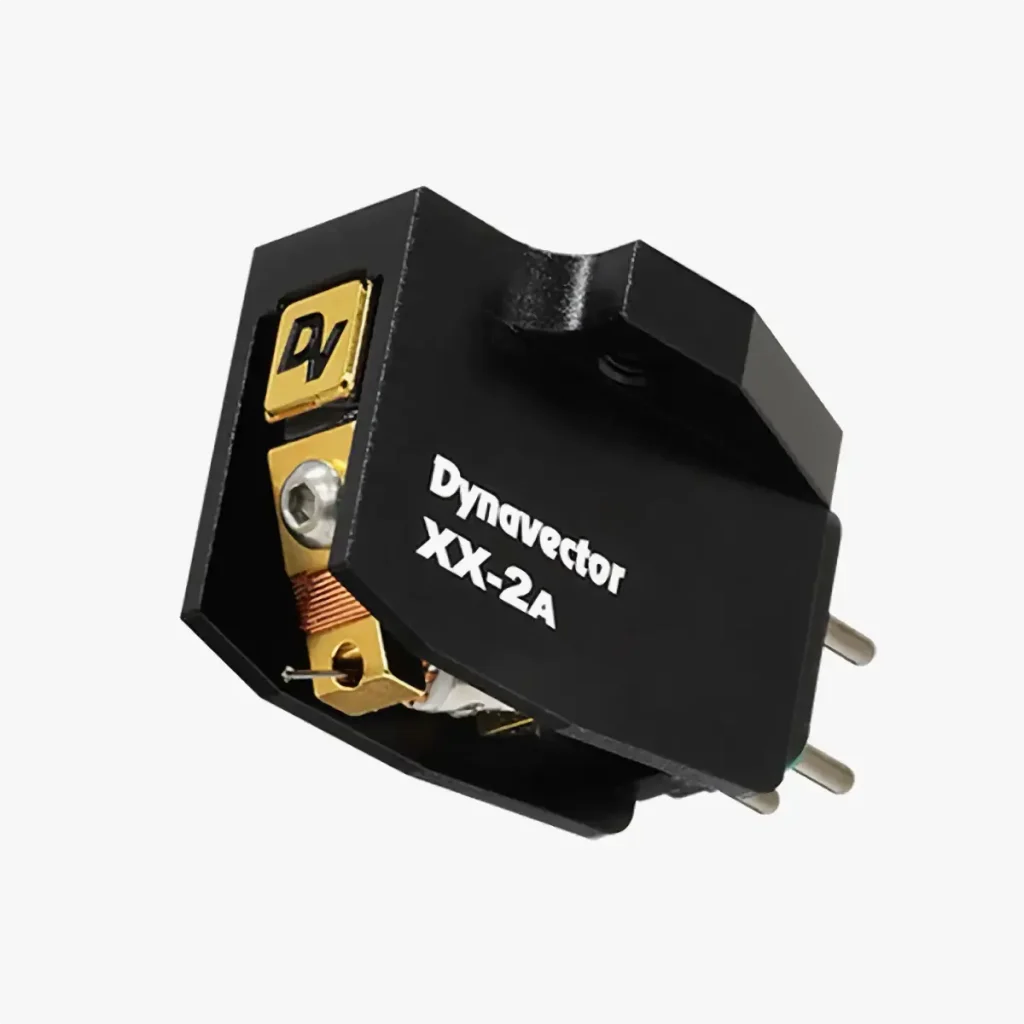

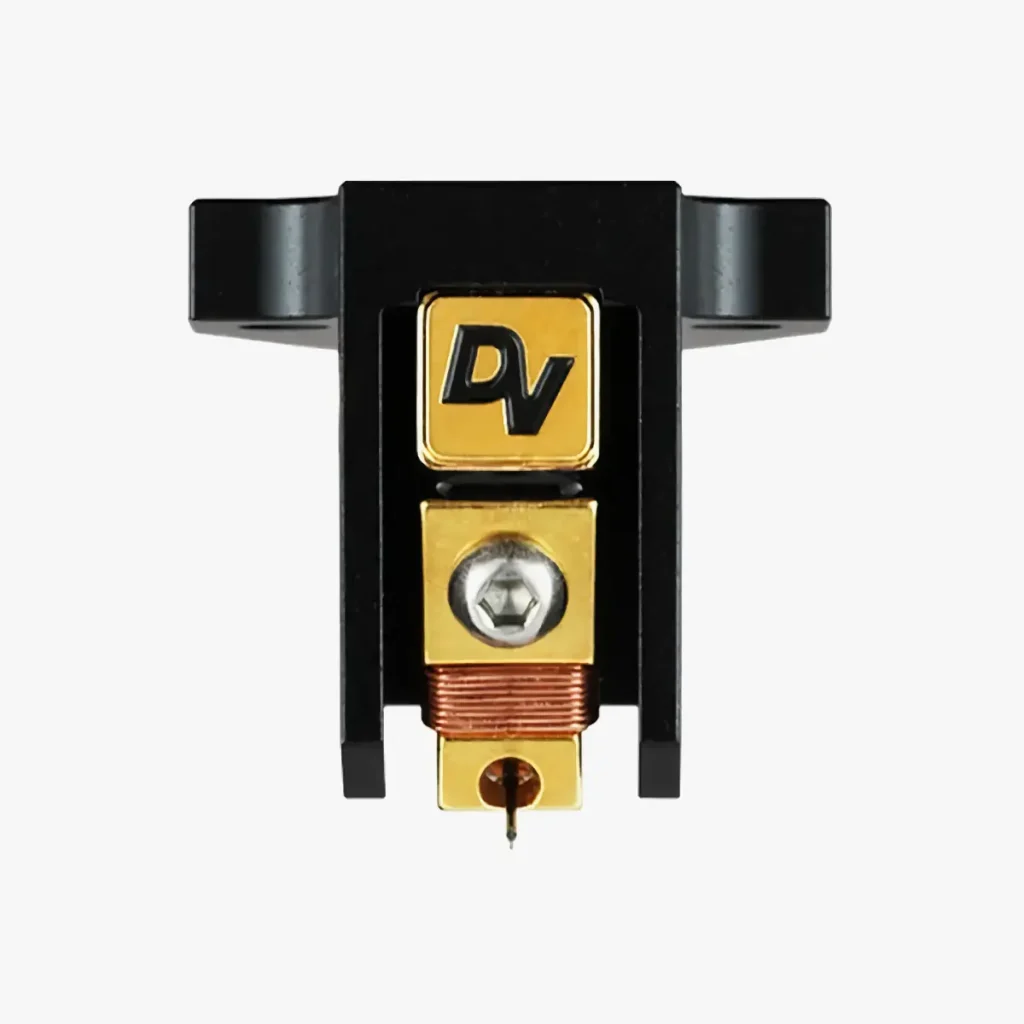

Dynavector XX-2A Moving Coil Cartridge
The Dynavector XX-2A features a boron cantilever, line contact stylus and special magnetic annealing for improved clarity and dynamic sound.
Description
The Dynavector XX-2A moving coil cartridge represents a significant evolution in analogue playback, delivering exceptional clarity, detail, and musicality. Building upon the acclaimed Dynavector XX2 MkII, the XX-2A incorporates Dynavector’s special magnetic annealing process, which enhances the performance of its Alnico magnet assembly. This advanced technique strengthens the magnetic field, reducing distortion and improving signal purity for an even more dynamic and lifelike sound.
At the heart of the XX-2A is a rigid boron cantilever paired with a nude line contact stylus, ensuring superior groove tracing and detail retrieval. The precision-wound low-impedance coils maintain tonal accuracy, while the robust cartridge body minimises resonance for clean, natural playback. With a wide frequency response and ultra-low distortion, the XX-2A is ideal for audiophiles seeking unparalleled vinyl performance.
The Dynavector XX-2A is a sophisticated cartridge that combines advanced technology and meticulous craftsmanship to elevate your listening experience.
Features
- Special magnetic annealing process: Enhances the Alnico magnet assembly for improved clarity and dynamics.
- Boron cantilever: Rigid and precise for accurate tracking.
- Nude line contact stylus: Captures every detail with superior groove tracing.
- Low-impedance coils (4 ohms): Ensure pure signal transmission and tonal balance.
- Alnico magnets: Deliver a warm, natural, and dynamic soundstage.
- Wide frequency response (20Hz–20kHz): Reproduces the full audio spectrum.
- Low-output moving coil design (0.28mV): Optimised for precision and fidelity.
Specifications
Attributes | Value |
---|---|
Brand |
Dynavector |
Cartridge Type |
Low output moving coil |
Output Voltage |
0.28 mV @ 1 kHz, 5 cm / sec |
Channel Separation |
30 dB @ 1 kHz |
Channel Balance |
1.0 dB @ 1 kHz |
Frequency Response |
20 Hz – 20 kHz ± 1 dB |
Compliance |
10 mm / N |
Tracking Force |
1.8 – 2.2 g |
Impedance |
6 Ω |
Recommended Loading |
>30 Ω |
Cantilever |
6 mm length / 0.3 mm diameter solid boron |
Stylus |
7 x 30 micron stylus radius, Pathfinder (PF) line contact |
Weight |
8.9 g |
