miniDSP SHD Audio Processor

£1,499.00

Extensive analogue and digital input and output options, and powerful integration and room correction tools, allow the miniDSP SHD audio processor to fit easily into any modern audio system.

The miniDSP UMIK-1 and UMIK-2 calibrated omnidirectional USB microphones are ideal for taking measurements with Room EQ Wizard or Dirac Live. UMIK-1 measures frequencies up to 24 kHz. With its larger capsule and higher sample rate, UMIK-2 reliably measures frequencies up to 96 kHz.

Need some help? Call 0161 399 0993 or contact us. We are happy to answer any questions you have.

Request a part exchange or price match.

Description

The miniDSP SHD is a high performance 2 in / 4 out digital audio processor incorporating Dirac Live® room correction. It has analogue and digital inputs and outputs, including built-in music streaming. The SHD heralds a new era in affordable yet powerful DSP-equipped network music streamers.

Features
  • Powerful Dirac Live® 3.x digital room correction
  • Powered by miniDSP’s new Device Console for over the air upgrades and live real-time control of DSP settings
  • Quad core ARM processor for network audio streaming
  • 32 bit floating point 450 MHz Analog Devices SHARC DSP
  • Stream via Roon, Volumio, Tidal / Tidal Connect, Spotify Connect and Qobuz

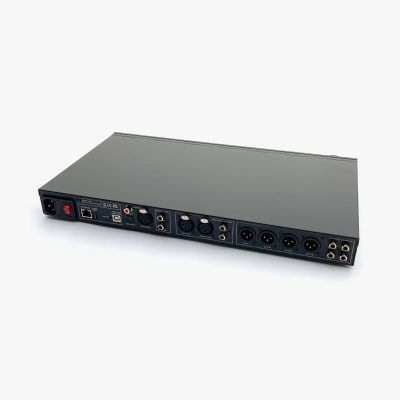

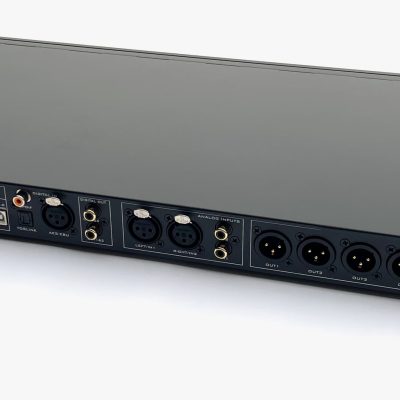

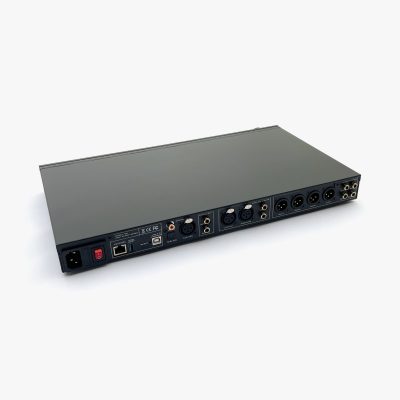

  • Multiple digital (USB, AES, S/PDIF coaxial and optical) and analogue (balanced XLR and unbalanced RCA) inputs
  • Digital coaxial, analogue balanced XLR and unbalanced RCA outputs
  • All output channels are available via USB audio for recording

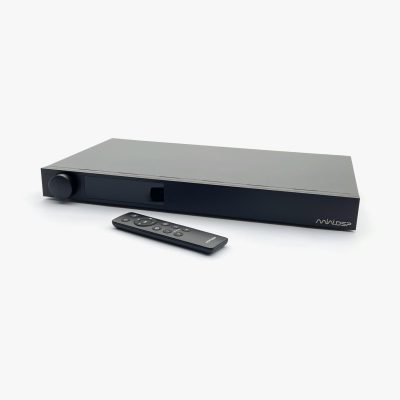

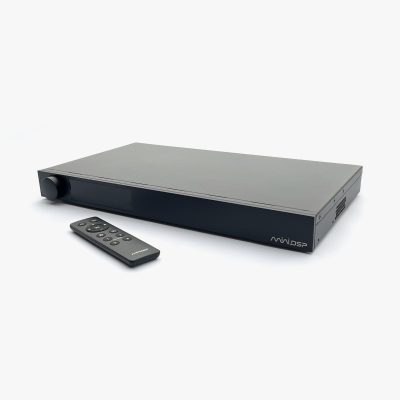

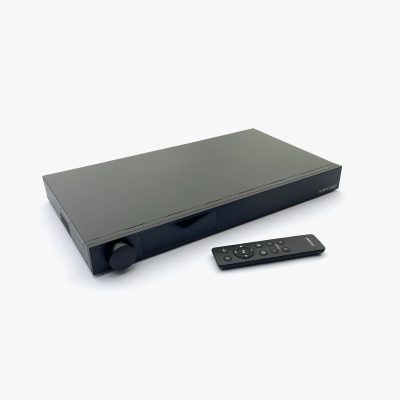

  • OLED front panel display and rotary encoder for volume control, input and preset switching

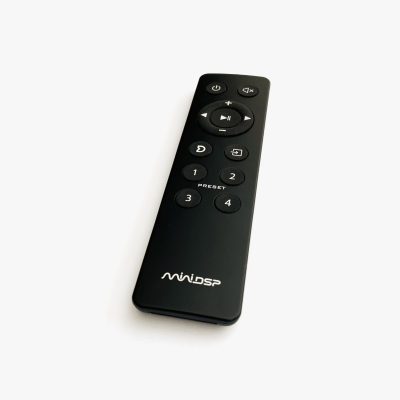

  • Remote control handset with easy access to volume control, input and preset selection
Versatile streaming options

The miniDSP SHD is a certified Roon Ready network player. Being Roon Ready means that the SHD is fully compatible with your Roon Core music server and Roon Remote apps. Roon provides an incredible user interface, simple setup, rock solid reliability and the highest levels of audio performance.

The quad core processor in the SHD also runs Volumio, a popular open source network streamer, providing web-based access to music files from sources as diverse as a USB stick to Internet Radio and Spotify, Tidal and Qobuz subscription services. Volumio can be controlled using your web browser or the native apps available for Android and iPhone / iPad.

Flexible connectivity

The SHD has extensive connectivity options. In addition to digital inputs and outputs similar to those found on the SHD Studio audio processor, the SHD also has analogue inputs and outputs.

Three digital inputs, two analogue inputs and a USB audio input enable the SHD to fit easily into any modern audio system. The four output channels are available as single ended RCA and balanced XLR analogue, as well as S/PDIF digital.

Powerful DSP tools

In addition to Dirac Live, the miniDSP SHD includes a comprehensive suite of powerful integration and room correction tools. Each of the four output channels provides ten band parametric EQ, crossovers up to 48 dB / octave, gain and delay trim controls, and a compressor / limiter.

With the SHD’s flexible 2 x 4 matrix mixer, you have complete control over signal routing. You can route any input channel to any output channel, and optionally mix channels to mono. This makes it easy to integrate mono or stereo subwoofers, or build crossovers for a two way active speaker.

Additional information

Brand

Colour

Black

Analogue Inputs

1 x balanced XLR, 1 x RCA

Analogue Outputs

4 x balanced XLR, 4 x RCA

Digital Inputs

1 x AES, 1 x coaxial RCA, 1 x optical Toslink, 1 x USB (Type B)

Digital Outputs

1 x USB, 2 x coaxial RCA

CPU

Quad core ARM® processor

DSP

32 bit floating point, 450 MHz, 96 kHz internal sample rate, Analog Devices SHARC ADSP21489

DAC

ESS Sabre ESS9028

ADC

AKM AK5574

Network

WiFi (via included USB adapter), Wired Ethernet

Output Level

2 V RMS unbalanced (max), 4 V RMS balanced (max)

Output Impedance

100 Ω unbalanced, 200 Ω balanced

Dimensions (WxDxH)

429 x 236 x 42 mm

Press

Amir for Audio Science Review

Documents and downloads

SHD product brief

SHD series user manual

Frequently Asked Questions

miniDSP audio processors offer a lot of flexibility and not every possible use case requires taking measurements with a microphone. However, if you are going to use your miniDSP processor for room correction, subwoofer integration or as an active crossover for your speakers, then you are going to want to take some measurements using software like Room EQ Wizard (REW) or Dirac Live.

miniDSP’s UMIK-1 and UMIK-2 omnidirectional USB measurement microphones work perfectly with REW, Dirac Live and most other measurement software. Both models come with individual calibration files for horizontal and vertical placement, to provide highly accurate measurements in either orientation.

The lower cost UMIK-1 microphone has a sample rate of 48 kHz. This allows it to measure audio frequencies up to 24 kHz. It covers the entire audible band and provides more than enough bandwidth for subwoofer integration or room correction duties, where attention is mostly focussed on the low frequencies.

For those who want to understand the behaviour of their speakers or room beyond the audible band and into the ultrasonic, miniDSP offers the UMIK-2. UMIK-2 is equipped with a larger, more sensitive microphone capsule and a higher end analogue to digital converter, which provides a maximum sample rate of 192 kHz. This enables UMIK-2 to reliably measure frequencies up to 96 kHz (two full octaves more than UMIK-1).
